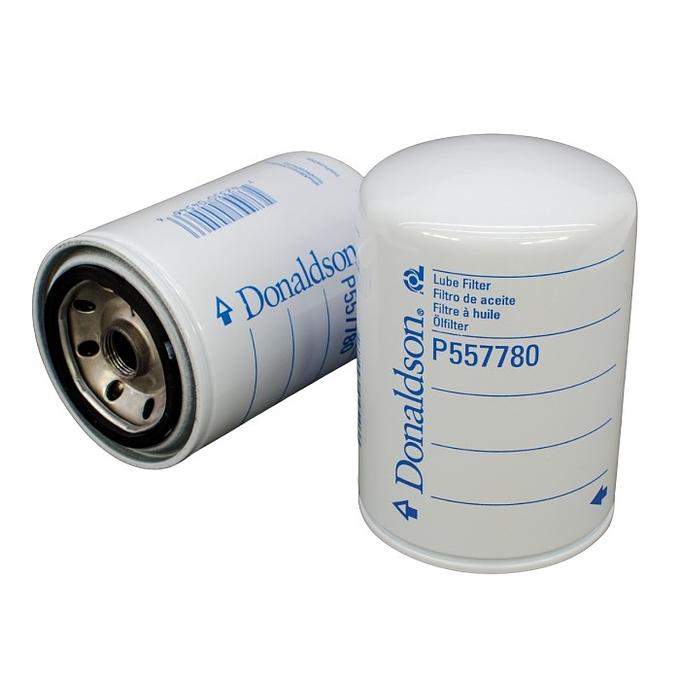

Filtro de Óleo Donaldson P557780

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Outer Diameter: 93 mm (3.66 inch)
Thread Size: 3/4-16 UN
Length: 136 mm (5.35 inch)
Gasket OD: 71 mm (2.80 inch)
Gasket ID: 61 mm (2.40 inch)
Efficiency 99%: 40 micron
Anti-Drainback Valve: Yes
Bypass Valve: Yes
Bypass Valve Setting LR: 0.75 bar (11 psi)
Bypass Valve Setting HR: 1.2 bar (17 psi)
Media Type: Cellulose
Collapse Burst: 13.8 bar (200 psi)
Type: Full-Flow
Style: Spin-On

Conversões
- AC DELCO:
PF1093
PF2038
PF1248
AC074
PF960
- ALCO:
SP901
- ALCOA MARINE:
IO340
- ALFA ROMEO:
592602
- ALLIS-CHALMERS:
2325784
4052572
4511629
02325784
45116292
- ALLOY:
ABH2850
- AMERICAN MOTORS CORPORATION:
IO340
- AMERICAN PARTS:
2057
2011
92452
- ASAHI:
220K
NO226
NO223
- ATLAS:
TF91
M50
M53
- ATLAS COPCO:
16196227
- AUTO PAR:
FE130
- B & W LATHROP:
P470
- BERGERAT MONNOYEUR:
E6779
- BIG A:
2057
92452
92191
92714
92647
92771
- BOMAG:
96004196
- BOSCH-REXROTH:
OF111
O626
P3059
P3005
P3012
P2005
PF160
OF160
72124
72137
OF152
451203088
OF134
451203061
451203059
451203012
OF124
0451104065
451203005
0451203005
P4065
451104065
72174
986452005
- CAM2:
PH2815
- CASE/CASE IH:
A146696
17131
A58758
A37189
G45210
V39198
- CATERPILLAR:
9Y4488
3I1605
812684
- CHAMP:
FP19
PH2815
PH2850
- CHRYSLER:
53020311
- CITGO:
C119
C257
- CLAAS:
5721190
- CLARK:
2743290
1752523
- CONOCO:
CN2850
- COOP:
PL452
PL366
- COOPERS:
Z559
- CROSLAND:
339
2029
2049
- DAEWOO:
24119014A
- DAIHATSU:
1520865014
- DEUTZ:
212272453
- EAGLE PICHER:
62274
- ECONOLUBE:
L30257
- EICHER:
30302
- EIMCO:
D2NP557780
- EVERGARD:
L30257
- FACET:
L3850
L2850
2850
3850
- FIAAM:
FT4790A
FT4765
FA4403
FT4963
- FIAT:
72370000
5926021
1930328
1354823
- FIRESTONE:
TF3850
TF2850
- FMC:
16A0234
- FORD:
9613327
E4NN6714BA
9576P557780
D5NN6714A
5009232
D8NN6714LA
5012580
5013148
C7NN6714BS
C7NN6714B
1523494
- FREIGHTLINER:
DNP557780
- GIESSE:
CLH389
- GOODYEAR:
2224521
2224508
L3850
- GRANT:
PH2815
GM30257
- GRAVELY:
I15360
- GREASE MONKEY:
GM3850
- GREYFRIARS:
946S
- GROUP 7:
V257
V119
- GROVE:
9414100922
- GUD:
Z135
Z139
Z115
- GULDNER:
8115561
- GULF:
GF213
- HAVAM:
HD7780
- HOBART:
509020
- HUERLIMANN TRACTORS:
244193000
- HYDRA MAC:
6200466
- HYSTER:
3000046
- IAPCO:
OF115
A0280006
- INGERSOLL RAND:
30472161
6458B1
- INTERCEPTOR MARINE:
1002984
- INTERNATIONAL:
819266R93
959757C1
1959757C1
388227R91
920203C1
918266R92
918266R91
918266R93
- INTRUPA:
83310
IF4007
- ISUZU:
8941145851
132012
8941697790
8941697781
8941697782
8941697780
894414778
13201002
X1320002
X13201002
- JCB:
2100284
- JOHN BEAN:
16A0234
- JOHN DEERE:
A146696
- KAESER:
619850
- KNECHT:
OC33
OC59
AW78
- KOEHRING:
8320244
- KOMATSU:
37Z020F201
- KRALINATOR:
L66
L130
- KUBOTA:
7000014647
1521132431
1612132430
1612132460
- LAMBORGHINI:
244193400
- LAZORLITE:
L111058
U111716
DD150
- LEE ENGINEERING:
LF2
LF2815HP
LF2HP
- LEE MAXI:
LF2815HP
LF2HP
- LINDE:
9830607
0009830607
68115561
- LONG:
TX10234
- LPM:
13506054
00013506054
- LUCAS:
F3744
F6442
- MACK:
485GB1138
- MAN:
A5000041045
- MANITOU:
486317
- MASSEY FERGUSON:
1031337M91
1621224M1
- MAZDA:
RF6614Y61A
- MCCORMICK:
A146696P
- MERCRUISER:
60565
- MINIT LUBE:
PH2815
- MISFAT:
12310204
- MONARK DIESEL:
30758061
30758012
- MOTAQUIP:
VFL241
VFL320
- MURPHY:
60541188E
43814
60541180003
605411880002
605411880003
MD43814
- MWM:
60541180002
- NISSAN/UD TRUCKS:
FL20805D01
A520843G0A01
1520805D00
1520805D01
1520805001
15205W1120
1520865000
92287Q7332
1520843G0A
1520843G00
15208W1120B
15208W1120
15208W1115
1520865016
1520865014
1520865004
1520865012
1520865011
1520865005
15208W1123
15208W3403
120190212001
BF20805D02
152087T400
152087F400
- NKK:
4NC102
- ONAN:
1220193
12201193
122B193
- ORENSTEIN & KOPPEL:
1499422
- OTTAWA TRUCK:
503106
- P.B.R.:
BC1160
- PERKINS:
2654343
- PERRY:
PL296
- PHILLIPS 66:
PO83
- PMC:
718
318
- PORSCHE:
90110720309
- POWER-FLO:
LER119
- PRINCETON DELIVERY SYSTEMS:
503106
- PRO GAUGE:
PGO119
- PRO-TEC:
106
- PROMOTIVE:
PH257
- PUROLATOR:
FCO257
PC257
PC31
FCO119
PER119
PER257
L34875
L35331
L10019
L30119
L30257
- QUAKER STATE:
QS3508
QS3569
QS2850
QS19
- RENAULT VI:
6005019754
- SANY:
60197083
- SCHAEFF:
P557780316541
- SCHLUTER:
SAK702
- SEARS:
45198
D8
TP8
45188
- SERVICE CHAMP:
OF257
- SHELL:
SH502
S38
S25
- STEYR-DAIMLER-PUCH:
21785821
- STILL:
141758
- SUNOCO:
O22
O10
- SYSTEMS MATERIAL HANDLING:
BWB114
- TECHNOCAR:
R65
- TELEDYNE:
503106
- TENNANT:
397032
FPS136
- TEXACO:
TFC502
TFC502B
- TIM:
812684
- TOWMOTOR:
0812684
- UFI:
2315602
- UNIPART:
GFE151
GFE206
- UNITED CENTRAL INDUSTRIAL SUPP:
688996
- UNOCAL:
PF2815
PF19
- V.A.G.:
68115561
69115561
68115561A
- VALMET:
YT0152
- VIC:
C025
C202
C209L
- VMC:
LF557780
- VOLKSWAGEN:
90110720302
008115561
068115561
068115561B
68115561
68115561B
076115561
69115561
76115651
76115561
- VOLVO:
795097
731094
1257492
12574927
1328126
13281611
- WALGAHN-MOTORENTECHN:
00811465
811465
- WARNER & SWASEY:
PH2815
WPH2815
- WAUKESHA:
P357440
357440
162709A
- WESTERBEKE:
16655
- WHITE:
35A5532
256269
674351A
150234A
155513A
- WISCONSIN:
RV32
- WORLDPARTS:
W27322
W27310
- XSV:
OP257
- YALE:
1500116
9071724
- ZETTELMEYER:
22665803
Aplicações
- AIRMAN-HOKUETSU:
PDS185S
- GRIMMER SCHMIDT:
160
- INGERSOLL RAND:
DRDS1
DRP140S
P140WP
PW85WD
- ALLIS-CHALMERS:
714B
- CASE/CASE IH:
480
480CK
580
580C
580CK
580CKB
580D
680
680C
680CKC
680E
- JCB:
214
215
- NEW HOLLAND:
675D
- TAKEUCHI:
TB45
- ALLIS-CHALMERS:
TL14
- CASE/CASE IH:
480LL
500LK
585D
- NEW HOLLAND:
555D
575D
655D
- BMC:
LEVEND 3.0
- IRISBUS:
300-680 315.8.17
300-680 316.8.13
- UD TRUCKS:
UD41
- CASE/CASE IH:
100 TASK FORCE
70+4
DH5
TF1000
- CASE/CASE IH:
1060
1075
1140
1160
1665
800
- DEUTZ-FAHR:
M1600H
- FORD:
7700
- CASE/CASE IH:
1150
310C
310D
310E
310F
310G
320
350
350B
420C
450
450B
455B
- CASE/CASE IH:
1737
1737S
1740
1835
1835B
1835D
1845
1845B
1845S
- HYDRA MAC:
20C
- NEW HOLLAND:
L L450
- CASE/CASE IH:
300C
400C
600
825
- CASE/CASE IH:
311B
320B
350C
350D
351
430CK
450D
470
480B
480C
480D
480D LL
510
511
511B
541
570
580B
584CK
585CK
586CK
600B
611
630
630C
631
641
780CK
830
830C
841
960
970
976
W3
POWERSHIFT 770
- EICHER:
242
3085
350 P
352 AS
352 S
365 AS
365 S
368
485
542 AS
566 AS
566 S
E65
ES202
ES210
ES400
KOENIGSTIGER I
KOENIGSTIGER II
MAMMUT 2EM600
MAMMUT E55
MAMMUT HR
MAMMUT HS
TIGER II
- FORD:
5100
5200
5610
7000 1965
7100
7200
7600 1975
7610 1981
7710
- HAKO:
CITYMASTER 1800 TDI
- HUERLIMANN TRACTORS:
H 1350 SX
- KUBOTA:
M110
M110DT
M120
M120DT
M5950
M5950DT
M5950DTS
M5950S
M6950
M6950DT
M6950DTS
M7580DT
M7950
M7950DT
M7950DTS
M8580
M8580DT
M8950DTS
M8950S
M M4950
M M4950DT
- SCHANZLIN:
200 204
500 504
- CASE/CASE IH:
3330
3330B
- CASE/CASE IH:
530CK
584CD
585C
585CD
586CD
- KOMATSU:
FG20-7
FG45-5
- LINDE:
H16
H18
- MANITOU:
4RM26F
MC MC15D
MC MC20CM
- STILL:
R70
- CASE/CASE IH:
850
- KOMATSU:
D571B
D58-1
D60S-8
- CASE/CASE IH:
P336
P50
T336
T50
TB336
TB50
- CASE/CASE IH:
W10E
W11
W14
W14H
W3D
W3G
W5A
W5AD
W5AG
W5D
W7D
W7E
W7G
W8E
W9E
- DODGE:
D & W SERIES PICKUP 1994
RAM PICKUP 1999
RAM PICKUP 1997
RAM PICKUP 1998
RAM PICKUP 1996
RAM PICKUP 1995
- NISSAN:
NAVARA D22 2001
NAVARA D22 2000
NAVARA D22 1999
NAVARA D22 1998
NAVARA D22 1997
PATROL GQ 1997
PATROL GQ 1996
PATROL GQ 1995
PATROL GQ 1994
PATROL GQ 1993
PATROL GQ 1992
PATROL GQ 1991
PATROL GQ 1990
PATROL GQ 1989
PATROL GQ 1988
PATROL GQ 1987
PATROL GU 1999
PATROL GU 1998
PATROL GU 1997
PATROL GU 2003
PATROL GU 2002
PATROL GU 2001
PATROL GU 2000
PATROL GU II 2007
PATROL GU II 2006
PATROL GU II 2005
PATROL GU II 2004
PATROL GU II 2003
PATROL GU III 2004
PATROL GU III 2003
PATROL GU III 2002
PATROL GU III 2001
PATROL GU IV 2007
PATROL GU IV 2006
PATROL GU IV 2005
PATROL GU IV 2004
- DORMAN:
3DA
- FORD:
BSD-333
BSD-442
BSD-444
BSD-444T
BSG-850
GSG-858
LSG-633
LSG-875
- ISUZU:
4BB1
4BD1
4BD1T
QD100
QD100T
QD60
- PERKINS:
6.354M
- EICHER:
422ES
- EICHER:
UNI SUPER G40
- HYMAC:
580BT
- KOBELCO:
KS903A
- SANY:
SY75C
SY75C-9
- KOMATSU:
WD222
WS23-2
WS23S-2
- NEW HOLLAND:
1049
1065
- NEW HOLLAND:
1425
- NISSAN:
ECO T 100.35 1996
ECO T 100.56 1996
ATLEON 110.35 2000
ATLEON 110.45 2000
ATLEON 110.56 2000
ATLEON 12.035 2004
ATLEON 12.056 2004
ATLEON 120.05 2001
ATLEON 120.056 2001
ATLEON 120.35 2001
ATLEON 120.35H 2004
ATLEON 120.35H 2001
ATLEON 35.13 2004
ATLEON 56.13 2004
L35.085 1993
- UD TRUCKS:
UD1300
UD1400
- TENNANT:
8400 SERIES
