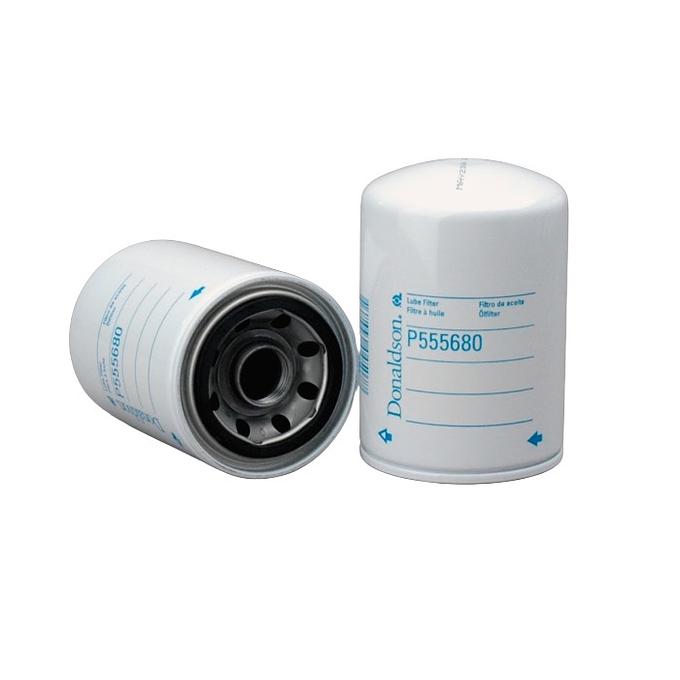

Filtro de Óleo Donaldson P555680

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Outer Diameter: 93 mm (3.66 inch)
Thread Size: 1-12 UN
Length: 136 mm (5.35 inch)
Gasket OD: 71 mm (2.80 inch)
Gasket ID: 61 mm (2.40 inch)
Efficiency 99%: 40 micron
Efficiency Test Std: ISO 4548-12
Bypass Valve: Yes
Bypass Valve Setting LR: 1.2 bar (17 psi)
Bypass Valve Setting HR: 1.6 bar (23 psi)
Media Type: Cellulose
Collapse Burst: 6.9 bar (100 psi)
Type: Full-Flow
Style: Spin-On
Primary Application: CATERPILLAR 9N5680

Conversões
- AC DELCO:
PF898
PF933
PF33
PF712
X12
- AG CHEM EQUIPMENT:
720300
9L9200
- ALCO:
SP950
- ALLIS-CHALMERS:
45307022
- ALUP:
17200222
- AMERICAN MOTORS CORPORATION:
70203C2
- AMERICAN PARTS:
832
837
92453
- ATLAS COPCO:
1614874700
1614874799
- BARBER-GREENE:
9L9200
9N5680
- BERGERAT MONNOYEUR:
E6766
E6644
- BIG A:
92261
92453
832
837
- BOSCH-REXROTH:
0451104066
50SL45P10
- BROS:
9N5680
9L9200
- CASE/CASE IH:
H411272
8888840
C0950546
C9TZ6731A
C9TZ6731B
C9DZ6731A
3116609R91
1004366C1
A32297
70203C2
70203C1
- CATERPILLAR:
9Y4484
3I1332
6V3690
605411880009
499129200
9L9200
9L9054
3I0722
9N5690
9N5680
9N1000
1R0734
- CENEX:
CO2862
- CHAMP:
PH791
- CHARDONNET:
725529700
- CMI:
499129200
- COMPACTION AMERICA:
31899200
- COOP:
PL1655
PL495
- COOPERS:
Z66
HSM6083
LSF5105
HSM6177
- CROSLAND:
319
- CYCLONE:
PM370
PM495
- DAEWOO:
D141099
- DELUXE:
374
297
292
WD297
WD292
WD374
- DEUTZ:
B0150157510
1160024ES
- DEZZI:
350070
- DONSSON:
GS022
- DRESSER:
530824R1
70203C1
- DYNAPAC:
752012
9L9200
- EATON:
5134988
- EIMCO:
64102479
- ELGIN:
9L9200
- EXMAN:
70203C2
- FAUN:
7395819
7381004
47395819
- FAW:
1012101A032
- FIAAM:
FP4653HP
FT4653HP
- FIAT:
74530702
82430832
C9TZ6731A
C9TZ6731B
4530702
45307022
7722374
C9DZ6731A
- FILT:
FF307EC
FF394EC
- FLO-LINE NO.:
PL654
- FORD:
9576P555680
C9DZ6731A
1R0734
C9TZ6731B
C9TZ6731A
- FREIGHTLINER:
DNP555680
- FURUKAWA:
530824R1
70203C1
- GOULD:
P370
P495
- GREYFRIARS:
HS7624
HS7516
- GROVE:
9L9200
- GUD:
Z66
- HERKULES (TELSNIG):
420000411
- HYSTER:
4020588
8802829
2075558
- INGERSOLL RAND:
89245773
39446489
9N5680
- INTERNATIONAL:
1004366C1
998437R91
70203C2
70203C1
530824R1
530824R2
3116609R91
- INTRUPA:
83235
- JOHN BEAN:
3A11653
- JOHN DEERE:
GG17016722
- JOY:
5276316
- KALMAR:
4530702
- KHD:
B0150157510
- KNECHT:
AW58
AW5
OC44
OC119
- KOMATSU:
70203C1
- KRALINATOR:
L151R
L151
D151
- KUBOTA:
7005090029
- LEROI:
9N5680
9L9200
- LINK BELT:
3A11653
- LOESING:
25001
025001
- LPM:
13505269
3513498806
00013505269
003513498806
- MACO-MEUDON COMPRESSORS:
529214
68529214
- MAN:
00050705704
50705704
813311800007
81331180007
- MARINE PERFORMANCE:
MPL846
- MASSEY FERGUSON:
1088209M91
9L9200
725859M91
1070756M91
- MI-JACK:
23100322
- NELSON:
85098A
- NELSON WINSLOW:
Q59304
- NEOPLAN:
DONP555680
- NEW HOLLAND:
9N5690
9L99200
9L9200
C9TZ6731A
C9TZ6731B
C9DZ6731A
- ORENSTEIN & KOPPEL:
1451198
103843
- P & H:
1046Z544
- P.B.R.:
BC1065
- PACCAR:
Y05997000
- PERMATIC:
FI280
- PERRY:
PL297
PL292
- PETERBILT:
1000960
10960
- POCLAIN:
8888840
C0950546
- PREMIER PRODUCTS:
249999021
- PUROLATOR:
L30054
PC249MIC25
PC249
6681138
MF45702A
L37249
PER5401
PER54
- QUAKER STATE:
QS36
- RENAULT VI:
5000816001
5070570
- SANDVIK:
64102479
- SAVARA:
92821217
92818317
- SERVICE CHAMP:
OF381
- SOPARIS:
OC44
OC119
CV338
- STEIGER:
28006
H411272
- SULLAIR:
02250154510
3545
68529214
03545
- SYSTEMS MATERIAL HANDLING:
YT513498806
- TAMROCK:
64102479
- TECHNOCAR:
R235
- TEREX:
103843
- TEXACO:
HDO12
- TFMC:
T00424
3A11653
- TIM:
9N5690
9N1000
9L9054
6V3690
- TOTAL SOURCE:
HY4020588
- TOWMOTOR:
9N5680
9L9200
1R0734
- UNITED CENTRAL INDUSTRIAL SUPP:
688932
- VAPORMATIC:
VPD5016
- VMC:
HF555680
LF555680
- WALGAHN-MOTORENTECHN:
00811440
811378
00811378
00811755
811440
- WARNER & SWASEY:
PH2862
- WAYNE:
44791
- WGB:
S273CP
- WHITE:
303119475
9L9200
312755117
- YUCHAI:
YJX6319
- ZETOR:
TB93407505
- ZF:
750131005
501203017
0501203017
0750131005
Aplicações
- AG CHEM EQUIPMENT:
TERRAGATOR 1253
TERRAGATOR 1603
TERRAGATOR 1604
- BARBER-GREENE:
SA141
SA150
- BLAW KNOX:
BK106
- BARBER-GREENE:
SB140
- CASE/CASE IH:
1030CK
656
701
702
703
705
713
730
731
830
830C
831
931
932
933
CS280
CS325
CS360
FARMALL 656
HYDRO 70
HYDRO 86
KM225
KM280
KM325
KM360
KS280
KS325
KS360
PT225
PT250
PT270
PT350
PTA251
PTA270
PTA280
PTA296
PTA297
PTA310
PTA325
RC200
RC210
RC225
SM325
ST200
ST210
ST220
ST225
ST251
ST270
ST280
ST300
ST310
ST325
ST350
COMFORT KING 930
BEARCAT IV CM225
COUGAR IV CM250
PANTHER IV CM325
PANTHER IV CM360
TIGER II ST320
- CATERPILLAR:
613
- DEUTZ-FAHR:
SF50
- FIAT:
4000
7600
- FORD:
5610
- STEIGER:
BEARCAT
BEARCAT II
SUPER WILDCAT
SUPER WILDCAT II
WILDCAT
WILDCAT III RC210
WILDCAT III ST210
- WHITE:
2-125
2-135
2-150
2-155
2-180
2255
4-150
4-175
4-180
4-210
4-225
- CASE/CASE IH:
1400 1480
1600 1680
700
715
- WHITE:
8900
- CASE/CASE IH:
710
711
712
- KOMATSU:
3600A
- CASE/CASE IH:
DH4
DH4B
- CASE/CASE IH:
W4
- CATERPILLAR:
900 902
900 906
900 906H
900 907H
900 908
900 908H
- CATERPILLAR:
1140
1145
1150
1160
3024
3046
3145
3150
3160
3204
3208
3208T
5310
- CATERPILLAR:
200 236B
200 236B2
200 236B3
200 246B
200 246C
200 248B
200 252B
200 252B2
200 252B3
200 256C
200 262B
200 262C
200 267B
200 268B
200 272C
200 277B
200 277C
200 279C
200 287B
200 287C
200 289C
200 297C
200 299C
- FORD:
CL-20
- CATERPILLAR:
300 301.5
300 301.6
300 301.8
300 315C
300 315L
300 317B
300 317BL
300 317BLN
318B
318BL
318BLN
- CATERPILLAR:
613B
- CATERPILLAR:
900 933C
900 939
900 939C
- CATERPILLAR:
AH40
AH46
AH52
AH60
AM25
AM30
AM36
AM40
B15
B16
B18
B20
B25
DP15
DP18
T30
T30B
T30C
T35B
T40
T40B
T40D
T45B
T50
T50B
T55B
T60B
T60C
T60DSA
TC60C
TC60D
TC60DSA
V1100CTH
V160
V160B
V180
V180B
V200
V200B
V225
V225B
V250
V250B
V300
V30C
V330B
V35B
V35C
V40
V40B
V40C
V40D
V45B
V45C
V50
V50B
V50C
V550
V620
V700
V800
V900CH
V925
V925LH
VC60C
VC60D
VC60DSA
- TOWMOTOR:
AH40
AH46
AH60
AM25
AM30
AM36
AM40
AM46
AM52
AM60
B15
B16
B18
B20
B22
B25
V160
V160B
V180
V180B
V200
V200B
V225
V225B
V250
V250B
V300
V300B
V30C
V35C
V40C
- CATERPILLAR:
D D3C III
D D3G LGP
D D3G XL
D D4C III
D D4G LGP
D D4G XL
D D5C III
D D5G LGP
D D5G XL
- DRILTECH:
D40K
- DYNAPAC:
CA25
CA25A
CA25D
CA25PD
CA25S
CA25T
CA30
CA50
CA51S
CC40
CC41
CC42A
CC50
CC50A
CC50PD
CC50S
- INGERSOLL RAND:
SP-56DH
- ELGIN:
WHIRL WIND
- FIAT:
7200
- NEW HOLLAND:
CROP CRUISER
- FIAT:
FQSD
- FORD:
CL-9000
CLT-9000
WT-9000
- GMC:
6500
7500 SERIES
BRIGADIER 8000
C6D042
C7D042
C7D064
J8C042
J8C064
J9C064
TOPKICK
- KENWORTH:
L700
- PETERBILT:
346
348
- GRADALL:
G660
- GRADALL:
HOPTO H700A
- GROVE:
1012
2535
- GROVE:
RT500
TM1075
TM1275
TMS185
TMS200
TMS250
- LEROI:
LION III
- TORO:
GROUNDSMASTER 580D
REELMASTER 4500D
