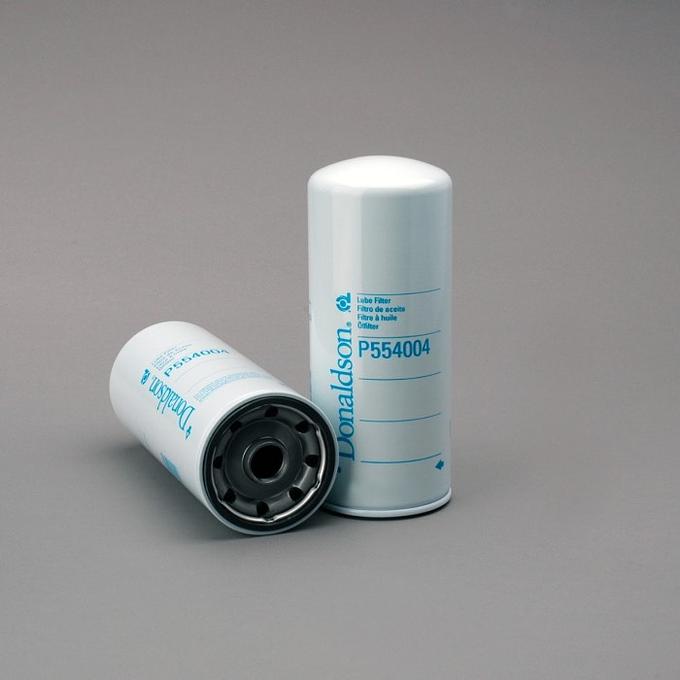

Filtro de Óleo Donaldson P554004

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Marca: Donaldson
Código: P554004
Tipo: Filtro Óleo
Diâmetro exterior: 108 mm (4.25 inch)
Tamanho da rosca: 1 1/8-16 UN
Comprimento: 262 mm (10.31 inch)
D.O. de gaxeta: 99 mm (3.90 inch)
Identificação da junta: 90 mm (3.54 inch)
Eficiência 99%: 40 micron
Teste de Eficiência Std: SAE J1858
Tipo de mídia: Cellulose
Rebentamento de colapsos: 10.3 bar (149 psi)
Tipo: Full-Flow
Estilo: Spin-On
Aplicação principal: CAT 2P4004 Not for EURO5/6 engines after 01/2019

Conversões
- AC DELCO:
06857
PF1080
PF1223
PF857
- AGCO:
74036791
- ALCO:
SP882
- ALLIS-CHALMERS:
4036791
40367914
74036791
- AMERICAN PARTS:
873
- AS:
SP424
- ATLAS COPCO:
2914809800
9772040090
- BERGERAT MONNOYEUR:
E6738
- BIG A:
92788
- BLOUNT:
538322
- BOSCH-REXROTH:
0451403077
F026407043
- CAMECO:
60013807
- CASE/CASE IH:
2836
60507493
W1250599
- CATERPILLAR:
1R0658
1R0739
1W3300
2P4004
2Y8096
3I1283
3Y0900
3Y0900X
3Y900
3Y900X
5P1119
81521036
IR0658
- CHAMP:
LFP3191
PH3191
- CHARDONNET:
7255400400
- CHINA LOCAL:
JX1023A
- CLAAS:
3600140
- CLEAN:
DO300
- COMPAIR:
9824650480001
98246504801
- COOP:
P481
- COOPERS:
AZL083
LSF5106
- CROSLAND:
2003
9309
9361
- DOGUS:
Y1018
- DONGFENG:
D1700202
- ECOLOG:
6003724
- EIMCO:
69002782
- ERF (E.R.F.):
GH27096
- EUCLID:
4666343
- FAMEL:
F27
F40
- FAW:
2S101201053DM
- FIAAM:
FT4878
- FIAT:
4036791
40367914
704036791
74036791
- FIL:
ZP531
- FILITRONIC:
A219Y
- FILT:
FF516EC
FF517EC
- FISPA:
FOE190
- FMC:
3A11555
- FODEN:
Y03061712
Y03601712
Y03720110
Y03725604
Y05008003
- FORD:
9576P554004
- FOTON:
D1700202
- FREIGHTLINER:
DNP554004
- GIESSE:
CLH465
- GIF:
GL312
GL316D
- GREYFRIARS:
9004S
9080S
953S
- GROVE:
9414100547
- GT PIECES ET SERVICES:
2240016
- GUARDIAN:
G051791
- GUD:
Z182
- GUIOT:
GH4900
- HAVAM:
HD0350
- HITACHI:
71901604
74663338
74667338
74667339
74667755
78826586
- IMPERIAL:
04LF667
- INGERSOLL RAND:
35310556
38480844
51914331
92658095
- JOY:
5276314
- KALMAR:
9216910001
- KENWORTH:
KW667
- KNECHT:
AW92
- KORODY COLYER:
FB76
- KRALINATOR:
KL177
L177
L177U
- LENZ:
CP103230
- LEYLAND-DAF (LDV):
ABU8784
GRH27096
- LINDE:
3562227706
- LIUGONG:
D1700202B
ME100139
SP101464
SP101651
- LOCKHEED:
AP77401A
LK97403
- LOESING:
25020
- MACK:
485GB4348
- MASTE:
DK101
- MENGELE:
98041802
- MI-JACK:
23160162
- MISFAT:
12314400
- NISSAN/UD TRUCKS:
1527499626
- ORENSTEIN & KOPPEL:
103847
8000239
- OSHKOSH:
6HD52
- P.B.R.:
BC1083
- PERMATIC:
FH139V
- POCLAIN:
W1250599
- PONSSE:
0067406
67406
- POSTAS:
AF1219
- PURFLUX:
LS778
LS841
- PUROLATOR:
L50068
L59068
PER67
PER68
- QUAKER STATE:
QS49A
- RENAULT VI:
6005019774
- ROMAN:
LUS4004
- SANDVIK:
69002782
- SAVARA:
92818017
- SDMO:
330560321
- SHANGHAI DIESEL:
D1700202
- SOPARIS:
CF513
CV513
- STEIGER:
28036
- TAMROCK:
69002782
- TAYLOR:
5597099
- TECHNOCAR:
R90
- TEREX:
103847
8000239
- TEXACO:
HDO1
- TRANE:
2706066026
- UFI:
2314400
- UNITED CENTRAL INDUSTRIAL SUPP:
688804
88804
- WALGAHN-MOTORENTECHN:
811406
- WFZ:
9025540040
- WHITE:
303498433
- WIRTGEN:
1880
- XGMA:
D1700202

Aplicações
- AG CHEM EQUIPMENT:
1064
- ALLIS-CHALMERS:
4W220
7045
7060
7080
7580
8070
- CASE/CASE IH:
7000 7400
STEIGER 9150
- CATERPILLAR:
627
637
65B
70C
CHALLENGER 35
CHALLENGER 45
CHALLENGER 65
CHALLENGER 65B
CHALLENGER 65C
CHALLENGER 65D
CHALLENGER 70
CHALLENGER 75
- FIAT:
2100
- LANDINI:
3160LXE
- MENGELE:
SF 5200
SF 5600
- NEW HOLLAND:
1885
1895
1900
- STEIGER:
BEARCAT IV CM225
COUGAR II
COUGAR IV CM250
- TIMBERJACK:
1000 1880
- ALLIS-CHALMERS:
N5
N6
R6
- CLAAS:
LEXION LEXION 410
LEXION LEXION 420
LEXION LEXION 430
LEXION LEXION 430 EVOLUTION
LEXION LEXION 440
- ATLAS COPCO:
ROC D7
- INGERSOLL RAND:
CM695D
ECM690
- BARBER-GREENE:
TA30
TA35
TA56
TA57
TA60
TA65
TA77
TC30
- VERMEER:
T655
T655DT
T755
T758
- BROYT:
X20
X21
X21TL
X30
X31
X4
X41
X50
X52
- CATERPILLAR:
315DL
318D
- KOMATSU:
6120
- ORENSTEIN & KOPPEL:
RH11
RH11LC
RH12
RH12 SPECIAL TROPEN
RH12B
RH12B SUPER TROPEN
RH12HD-500
RH12HD-600
RH12LC
RH9 SPECIAL TROPEN
RH9 TROPEN
RH9-600
RH9E
RH9E SUPER TROPEN
RH9E TROPEN
RH9G
- CATERPILLAR:
120 120G
12 12G
12 12H
130 130G
160 160G
- CATERPILLAR:
200 213B
200 215
200 215B
200 215BSA
200 215C
200 215D
200 219
200 219D
200 225DLC
200 229D
200 235
200 235B
200 235C
200 235D
300 311
300 311B
300 311C
300 311CU
300 311D
300 312BL
300 312C
300 312CL
300 312D
300 314C
300 314CCR
300 314D
300 315BL
300 315C
300 315CL
300 315D
300 319C
300 319D
300 320
300 320B
300 320BL
300 320BLN
300 320BLU
300 320BN
300 320BS
300 320BU
300 320C
300 320CL
300 320CLN
300 320CLU
300 320CU
300 320D
300 320DL
300 320L
300 320N
300 320S
300 321C
300 321D
300 321DLCR
300 322
300 322BL
300 322BLN
300 322CL
300 322CLN
300 322L
300 323DL
300 323DLN
300 325
300 325BL
300 325BLN
300 325CL
300 325CLN
300 325L
300 330
300 330B
300 330BL
300 330BLN
300 330L
300 330LN
318C
330C
- CATERPILLAR:
200 214B
200 214BFT
200 224B
800 814B
- CATERPILLAR:
3064
3066
3114
3126B
3304
3304B
3306C
G3306
- CATERPILLAR:
300 323DMHPU
- CATERPILLAR:
3304T
- CATERPILLAR:
3306
3306B
- CATERPILLAR:
330CFP
518C
528B
530B
533
539
543
545
550
570
570B
574
580
580B
FB518
- CATERPILLAR:
345CMH
365BMH
365CMH
- CATERPILLAR:
515
517
518
518 II
525B
527
528
535B
- CATERPILLAR:
500 572R
- CATERPILLAR:
611
613C II
615C
615C II
621R
621S
627B
627E PS
627F
638G
600 627G
600 637D
COAL 637G
- CATERPILLAR:
800 815B
800 816B
CB CB634C
CB CB634D
CP CP533
CP CP533C
CP CP563
CP CP563C
CS CS531C
CS CS533C
CS CS563
CS CS563C
CS CS563D
CS CS583
CS CS583C
- HYSTER:
C450B
C451A
C451B
C455B
- XCMG:
YZ18JC
- CATERPILLAR:
62K3390-11413 920
62K11414 920
900 924G
900 924GZ
900 926E
900 928G
900 930
900 930G
900 950B
900 950E
900 950F
900 966C
900 966D
900 966E
900 966F
900 966R
900 980B
R1300
- FIATALLIS:
2100
- LIUGONG:
842
856
CLG842
CLG856
ZL40B
- VOLVO CONSTRUCTION EQUIPMENT:
L L90
- XGMA:
XG951
- CATERPILLAR:
900 963
900 963C
900 973
- CATERPILLAR:
AP AP1000
AP AP1050
AP AP1050B
AP AP1055B
BG BG2455C
BG BG245C
- DYNAPAC:
PL2000
- INGERSOLL RAND:
MW-6520
- CATERPILLAR:
D D20D
D D250B
D D250D
D D250E
D D250E II
D D25C
D D25D
D D300B
D D300D
D D300E
D D300E II
D D30C
D D30D
D D350C
D D350D
D D35C
- CATERPILLAR:
D D4E
D D5B
D D6D
D D6E
D D6H
- CATERPILLAR:
D6G
D7G
D D8R
- CATERPILLAR:
IT IT28G
- CATERPILLAR:
TK370
TK380
- CHEVROLET:
KODIAK
KODIAK C6500
- DENNIS:
DORCHESTER
- ERF (E.R.F.):
C C31 1980
C C36 1980
C C40 1983
C C42 1980
E E12.23 1986
E E12.27 1986
E E12.29 1986
E E16.32 1986
E E16.35 1986
- FORD:
CL-9000
CLT-9000
F-650
F-750
- FOTON:
AUMAN 6
- FREIGHTLINER:
CONDOR
FL50
FL60
FL70
FL80
FLD
M2
- GMC:
C6H042
C7H042
TOPKICK
TOPKICK C6500
TOP KICK C7H064
- KENWORTH:
K100
K100E
L700
T300
T400A
T600A
T800
W900
W900B
- LEYLAND:
CONSTRUCTOR 1983
CONSTRUCTOR 30.23
CONSTRUCTOR 30.25
CONSTRUCTOR S26
- PETERBILT:
320
330
335
340
346
348
349A
349B
349H
349W
357
375
377
379
- SEDDON ATKINSON:
401 SERIES 1982
T17G32 1986
T22G32 1986
T24G32 1986
- STERLING:
ACTERRA
ACTERRA 6500
ACTERRA 7500
ACTERRA 8500
CONDOR
LT7500
M8500
MT7500
- WESTERN STAR TRUCK:
3764SS
- WHITE:
WCL42T CONVENTIONAL
WCL42T CONVENTIONAL 1985
WCL46T CONVENTIONAL
WCL46T CONVENTIONAL 1985
- COMPAIR:
550
- INGERSOLL RAND:
12/235
17/235
21/215
9230
9255
HP600S
HP600W
HP900W
P1050S
P1050W
PB4
VHP700S
VHP700W
VHP850WCAT
XHP600SCAT
XHP650WCAT
XP1000WCAT
XP750S
XP750W
XP900S
XP900W
- JOY:
RPQ850
RPS850
- SULLAIR:
750Q
H1050
H750
H900/150
RC8
- DENNIS:
DOMINATOR
- FREIGHTLINER:
C2
FS65
- HEULIEZ BUS:
GX GX217
GX GX417
- LEYLAND:
NATIONAL
NATIONAL 2
- METRO CAMMELL WEYMANN:
DR SERIES
- PADANE:
X XB10
- GROVE:
RT680S
RT865
RT980
TMS500
TMS865
- NEW HOLLAND:
1915
- P & H:
2355
- TIMBERJACK:
1000 1840
1000 1870
- WIRTGEN:
W1000
- XGMA:
XG951
