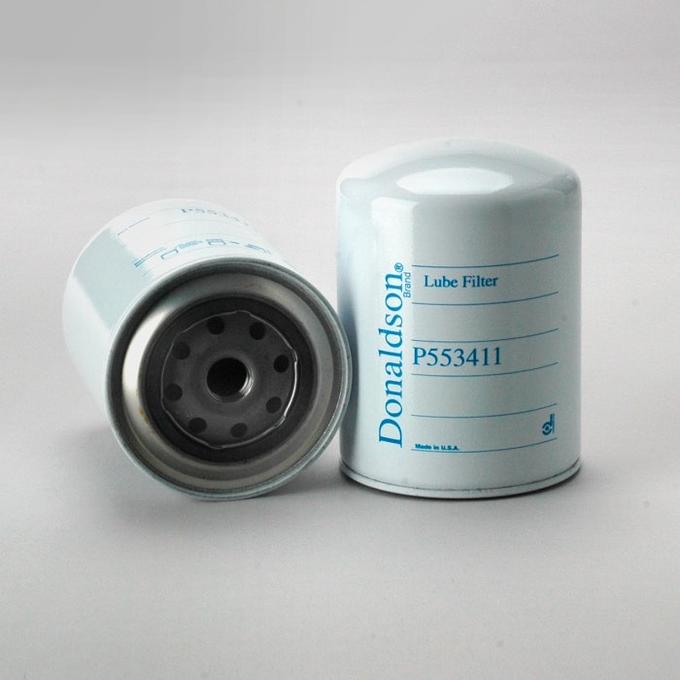

Filtro de Óleo Donaldson P553411

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Marca: Donaldson
Código: P553411
Tipo: Filtro Óleo
Diâmetro exterior: 108 mm (4.25 inch)
Tamanho da rosca: 3/4-16
Comprimento: 148 mm (5.83 inch)
D.O. de gaxeta: 71 mm (2.80 inch)
Identificação da junta: 62 mm (2.44 inch)
Eficiência 99%: 40 micron
Teste de Eficiência Std: SAE J1858
Válvula Anti-Drenagem: Yes
Válvula de desvio: Yes
Ajuste da válvula de desvio LR: 0.8 bar (12 psi)
Ajuste da válvula de desvio HR: 1 bar (15 psi)
Tipo de mídia: Cellulose
Rebentamento de colapsos: 6.9 bar (100 psi)
Tipo: Full-Flow
Estilo: Spin-On

Conversões
- A P PARTS:
AP3148
LK3148
- AC DELCO:
PF1032
PF14
PF32
X38
X50
- AGCO:
72216906
72270873
72270893
- ALCO:
SP855
- ALLIS-CHALMERS:
0451341
04513411
04625547
190102
1909102
2089505
2089590
4027979
40279796
451341
4513411
45134111
4600875
4625547
4630787
620000
74027979
74513411
- AMERICAN MOTORS CORPORATION:
OC20040
OC33030
SFO0186
SFO0940
SFO100A
- AMERICAN PARTS:
623
92411
92601
- BENATI:
1836106
- BERGERAT MONNOYEUR:
E6733
- BIG A:
623
92411
92601
- BOSCH-REXROTH:
0451104065
0451203007
0451203059
0451203061
0451203090
451104003
451203007
451203090
451203152
9450732018
P3152
- BRAUD:
4313411
- CASE/CASE IH:
1836106
1931165
47128196
925229C1
925229C91
A800X6714RA
D2750580
D2NN6714A
D5NN6714A
- CATERPILLAR:
3I1273
9Y4505
- CHAMP:
LFP3411
PH3411
- CHRYSLER:
L48
- CLAAS:
24151018
3563591
5000044487
572119
5721190
- CLARK:
9100151
9311037
BT267
- CLEAN:
DO242
DO284B
- COOP:
PLAC12B
- COOPERS:
AZL126
LSF5001
LSF5004
LSF5126
LSF5129
- CROSLAND:
630
655
CR655
- CYCLONE:
PM341
- DELUXE:
181
WD181
- DEUTZ:
605411880002
- DEUTZ-FAHR:
411553001
- DRESSER:
925229C91
- EIMCO:
2NP553411
69016713
- EMD:
9311037
- EXMAN:
OC20040
OC33030
SFO0186
SFO0940
SFO100A
- FAMEL:
F113N
- FAUN:
1470819
4134473
- FIAAM:
FT4669
FT4669T
FT4813
FT4945
- FIAT:
01901602
14730587
1836106
1901602
1901602546230
1907567
1909102
4027979
4222406
451341
4513411
4602186
4607360
4608186
4625546
4630787
46307873
4B27979
62775369
70451341
704625547
71961003
74027979
74513411
74602186
74607360
74608186
74625546
74630687
74630787
74730587
75144632
75413411
86546609
A800X6714RA
D2NN6714A
D5NN6714A
- FIATALLIS:
74027979
74630787
- FILT:
FF174
FF175
FF308
FF309EC
- FINN EQUIPMENT:
FFUP409
- FISPA:
FOE033
LI3621
- FORD:
5000862
5007386
9613343
A730X6714JA
A740X6714BA
A800X6714RA
D2NN6714A
- FREIGHTLINER:
DNP553411
- FRIGIKING:
3100218
- FSA:
FO1027
- FURUKAWA:
925229C91
- GARDNER DENVER:
2012840
26A43
- GENERAL ELECTRIC:
2X2784
- GIESSE:
CLH343
- GIF:
GL286
- GOULD:
P341
- GRADALL:
7021847
- GREYFRIARS:
9036S
971S
- GUD:
Z100
Z64
- GUIOT:
GH2826
- HANOMAG TRAKTOREN:
114932108
860114932108
- HAVAM:
HD0335
- HAWKER SIDDELEY:
400000401
- HERKULES (TELSNIG):
400000401
- HITACHI:
1909102
1930329
46307873
62775369
70451341
74027979
74513411
74730587
75144632
75413411
L01909102
- INGERSOLL RAND:
38480372
- INTERNATIONAL:
925229
925229C1
925229C91
- IVECO:
1901602
1907567
1909102
24151018
3141914
3563591
4602186
5000044487
74027979
74730587
- JOY:
46Z525D1
- KNECHT:
FO37112
FO3715
OC134
OC15
OC67
- KOMATSU:
2862642M1
- KRALINATOR:
L112
L20
L40
L40A
- KUBOTA:
1545132430
1654399170
7000014652
7000015451
7000057500
HH1G032430
- LANCER BOSS:
9251517
- LAND ROVER:
36010682
- LANDA:
36010682
- LOCKHEED:
AP3148
AP3148A
LK3148
- LOESING:
025126
25126
- LPM:
LP12
- LUCAS:
G358
- MAN:
00024151017
24151017
A5000041045
- MASSEY FERGUSON:
114932108
1621210M1
2862642M1
2864642MI
- MASTE:
DK88
- MISFAT:
12310800
- MORBARK:
29219026
- NEW HOLLAND:
1909102
74027979
84221215
86546609
98432642
A800X6714RA
D2NN6714A
D5NN6714A
N1909102
- NEW IDEA:
4513411
- ORENSTEIN & KOPPEL:
1448985
- P.B.R.:
BC1037
BC1050
- PERKINS:
26540214
26540215
2654350
- PERMATIC:
FH133V
GL553X
GL553Z
- PERRY:
PL181
- PHILLIPS 66:
P22
- PRO MATCH:
9Y4505
- PURFLUX:
L412
LS186
- PUROLATOR:
6673074
L30022
L34733
L37198
L37231
LI3621
PMP312
R22
- QUAKER STATE:
500044487
- RENAULT VI:
0003141914
0003563591
24151018
3141914
3563591
5000044487
500044487
6000141020
6005019791
6005025600
6005919776
- ROMAN:
LUS35
- SAME:
04115520
04115530
0411553001
04115560
04145530
104115530
244191301
24419130101
2441915031
244193400
24419340010
4115520
4115530
411553001
4115560
4145530
- SANDVIK:
69016713
- SAVARA:
92801217
92807217
92818617
92825017
SO012
- SDMO:
330560190
- SOPARIS:
CB352
- STAY READY:
SRPFPH12
- TECHNOCAR:
OP356
R169
R70
R74DF
- TEHO:
OK46
- TEREX:
D2750550
D2750580
- TRUCK CARE:
07101220
7101220
- UFI:
2310800
2310801
2324100
2541500
- UNITED CENTRAL INDUSTRIAL SUPP:
688780
- VMC:
LF553411
- VOLVO:
430143
731094
73194
795097
795660
7956600
897321
- VOLVO PENTA:
430143
731094
73194
795097
897321
- WALGAHN-MOTORENTECHN:
00811394
811394
- WHITE:
400000401
- WORTHINGTON:
ELM49
ELM60
FLR373

Aplicações
- AGCO:
6000 6690
7000 7630
- AGRIFULL:
100 100
100 100DT
100 110
100 110DT
30 30
30 30DT
A A100
A A100S
A A110S
A A90
A A90S
- ALLIS-CHALMERS:
175
180
185
185D
190
190XT
190XT III
210
220
220D
5040
5045
6060
6070
6080
652
655
7G
D17D
D19
D19D
D21
D21D
FD9
H4
HD16
HD16D
HD16DC
HD16DP
HD21A
HD4
HD7G
- CASE/CASE IH:
JX JX65
JX JX80U
JX JX90U
JX JX95
- EICHER:
2090 A
2100 A
- FIAT:
100.90DT
1000DT
1000DTS
1000N
1000S
110.9
115.9
1180DT
1280
1280DT
130.9
130.90DT
1380
215
220C
221
231
241
251
255C
300
300DT
322C
350
3505 SPECIAL
350C
355
565C
570DT FRUTTETO
570DT VIGNETO
605C
640DT
65
650DT
655
655C
665 MONTAGNA
665C
670 FRUTTETO
680DTH
750N
755
755C
765C
775C
805
840
85
85.55
850
850DF
88-94
880-5DT
880DF
880DT
90.55C
90.9
90.90DT
900DT
95.55
955
955C
980DT
995C
DIAMANTE 215
F100 WINNER
F100DT
F110 WINNER
F110DT
SERIES 211
SERIES 250 NASTRO D'ORO
HI-LO F120 WINNER
- FIATALLIS:
M65
- HUERLIMANN TRACTORS:
H 307 XE
H 372
H 6165 DT
H 6190
XA 658
- KUBOTA:
M M125X
M M7030
M M7030DT
M M7030MDT
M M8030
M M9580
M5500
M5500DT
M5950
M5950DT
M5950DTS
M5950S
M6030
M6030DT
M6030F
M6950
M6950DT
M6950DTS
M7030F
M7030SU
M7500
M7500ACL
M7500DR
M7500DT
M7580DT
M7950
M7950DT
M7950DTS
M8030DT
M8030F
M8950DTS
M8950S
- LAMBORGHINI:
AGILE 990S
CHAMPION 119
CHAMPION 134
CHAMPION 149
CHAMPION 160
CHAMPION 180
CHAMPION 200
FORMULA 105DT
FORMULA 115DT
FORMULA 135DT
GRAND PRIX 874-90T
PLUS 990FDT
PREMIUM 1050DT
PREMIUM 1060DT
PREMIUM 1099
PREMIUM 1299
PREMIUM 850DT
PREMIUM 950DT
RACING 150DT
RACING 165DT
RACING 190DT
- LANDINI:
3300
3350
3450
3500
LAVERDA 3350
- NEW HOLLAND:
100
100-90
1000
110-90
115-90
1180
1280
300
3010
350 C
355C
355F
4835
5635
60
6635
70
7530
75F
7630
7635
80
8030
8040
8050
8060
8070
8080
8085
90
90F
95
955C
980
HYDRO 85
HYDRO 95
MAGNUM 250
MX255
TL100
TL70A
TL75E
TL80
TL80A
TL90A
DT WINNER F100
DT WINNER F110
DT WINNER F115
DT WINNER F120
DT WINNER F140
TD TD55D
TD TD65D
TD TD75D
TD TD85D
TD TD95D
- SAME:
100.4 DT
150 DT
160 DT
190 DT
88
90 DT
95
ANTARES 100
ANTARES 130
ANTARES 130T
BUFFALO 130
DORODO 60
DRAGO 100
EXPLORER 70 C
EXPLORER 90
EXPLORER 90 C
EXPLORER II 90
EXPLORER II 90 SP
GOLDEN 85
JAGUAR 100
LASER 100
LASER 110
LASER 130
LASER 90
LEOPARD 90
RUBIN 120
RUBIN 150
RUBIN 200
SILVER 110
SILVER 130
TIGER 60
TIGER 70
TITAN 145 DT
- ALLIS-CHALMERS:
109634
2800
2900
32200
3400
3500
3500 MKII
433I
433T
D262
D262T
- KUBOTA:
D1101
D1102
D1301
D1302
D1402
S2600
S2800B
- MWM:
D327-4
D327-6
D916-4
D916-6
TD226-4
TD226-6
- SAME:
1053 L
1053 P
1054 L
1054 P
983 L
983 P
- ALLIS-CHALMERS:
500
600
705D
706D
708D
ACC120
ACC60
FD10024
FD12024
FD6024
FD7024
FD8024
FPD6024
FPD7024
FPD8024
FSD6024
FSD7024
FSD8024
- KOMATSU:
FG FD20
FG FG20
FG FG25-1
FG FG25S
FG FG30S-11
FD FD20-5
- ALLIS-CHALMERS:
5167
616
622
707
707XTB
760XTB
801
802
860
860XTB
880
R
- FIATALLIS:
616
- ALLIS-CHALMERS:
545
545H
FE18
FL7
FL7B
FL8
FR10
FR10B
FR12
TL653
TL655
- ALLIS-CHALMERS:
615
650
653
710C
714C
715C
918
- NEW HOLLAND:
LB LB75
- ALLIS-CHALMERS:
620
- ALLIS-CHALMERS:
645
- FIATALLIS:
10 B
100
- ALLIS-CHALMERS:
65B
DD
M65
- FIAT:
65B
M65
- FIATALLIS:
65B
M65
- ALLIS-CHALMERS:
A
AH
AII
B
C
CH
CII
CR
F
F2
F3
G
GH
K
K2
RI
- FIATALLIS:
F
F3
R
- NEW IDEA:
708
709
801
- ALLIS-CHALMERS:
DES100
DES30
DES35
DES45
DES60
DES90
- ATLAS COPCO:
15KW
- KUBOTA:
GV GV3120
GV GV3170
GV GV3170SW
GV GV3240
GV GV3240SW
- ALLIS-CHALMERS:
FR11
- ALLIS-CHALMERS:
T16D
TL10D
TL12A
TL12D
TL14
TL14A
TL545
TL545H
TL645
TL645H
- FIAT:
545
FR10
- FIATALLIS:
545
545H
FR10
- ALLIS-CHALMERS:
TP103
- BENATI:
BEN 12S
- BRAUD:
605
- FIAT:
220
- FIAT:
AD7D
BD7D
FD7
FD7D
FL7
- FIATALLIS:
FL8
TL645
TL645H
- FIAT:
FE14
FE16
FE18
FE18LC
FE18R
FE18RM
- FIATALLIS:
18R
FE14
FE16
FE18
FE18LC
FE18R
FE18RM
- FIATALLIS:
AD7D
BD7D
FD7
FD7D
FL7
- FORD:
1621 2001
- IVECO:
Z 100-13 1980
Z 109-14 1983
Z 79-13 1983
Z 79-14 1983
ZETA 109-14 1985
MK 110-14 1983
MK 135-14 1983
MK 135-17 1983
MK 80-14PM 1982
MK 90-13 1983
MK 90-14 1988
M 115-14 1983
M 135-17 1983
M 95-14 1983
- GRADALL:
G600
- HITACHI:
FR FR100
W130
- IRISBUS:
MINIBUS A A70-14
MINIBUS A A79-14
Z110
Z120TA
Z220
Z220T
Z230T
Z235T
Z340T
- MILLER ELECTRIC:
WD5
- NEW HOLLAND:
410
- THOMAS:
T173
T203HD
T233HD
- NEW HOLLAND:
LM410
LM430
LM640
- WORTHINGTON:
160
