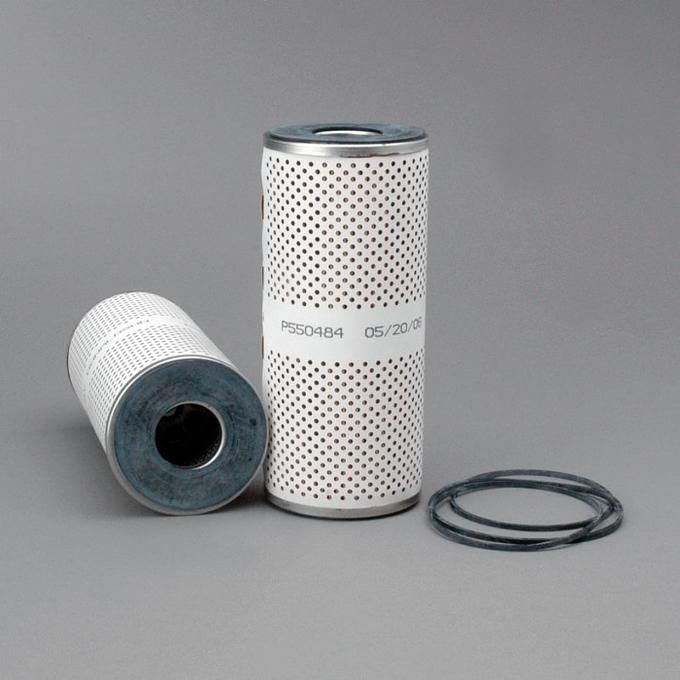

Filtro de Óleo Donaldson P550484

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Marca: Donaldson
Código: P550484
Tipo: Filtro Óleo
Diâmetro exterior: 101 mm (3.98 inch)
Diâmetro interior: 41.7 mm (1.64 inch)
Comprimento: 236 mm (9.29 inch)
D.O. de gaxeta: 88.7 mm (3.49 inch)
Identificação da junta: 44.3 mm (1.74 inch)
Eficiência 99%: 40 micron
Tipo de mídia: Cellulose
Rebentamento de colapsos: 6.9 bar (100 psi)
Estilo: Cartridge

Conversões
- AC DELCO:
12328
AC113
PF328
- ALCO:
MD049
- ALCOA MARINE:
KO1535
- AMERICAN MOTORS CORPORATION:
KO1535
OE20030
OE21010
OE22050
SFO0484
- AMERICAN PARTS:
684
92161
92442
- ARMAFILT:
OB1002320
OB1002350
- ASAHI:
KO1535
KO1549
- ASAS:
AS166
- ATLAS COPCO:
97100376
- AUTOCAR:
2LB0611
43274
- BARBER-GREENE:
7M3800
9F6700
- BAY CITY:
9F6700
- BEML:
1306048140
1754314130
504300510000
- BIG A:
684
92161
- BOSCH-REXROTH:
1457429470
1457429474
19HE
9457200190
P9590
- BRIGGS & STRATTON:
B33
BP15
- BROS:
5S0484
- BUFFALO-SPRINGFIELD:
5S0484
- BUSSING:
90801195131
- CASE/CASE IH:
A730X6744GA
- CATERPILLAR:
1R0659
1W7339
1W7390
1W7399
3I0719
3I1185
3I1236
4W4840
4W4926
4W7840
55484
555484
5S0484
5S484
5S5484
7M3800
7M7176
7S6638
7S9896
7S9S96
8N4301
9F6426
9F6427
9F6428
9F6430
9F6700
9Y4520
P5S484
R24926
- CHAMP:
LP161
P161
- CHRYSLER:
L47
- CLARK:
946108
- CLEAN:
ML411
ML811
- CLEVELAND:
5S484
9F6700
- CONTINENTAL:
PC191
- COOP:
PL7M3800
PM5S489A
- COOPERS:
AZH020
AZL004
AZL073
G108
G878
GP108
HEM6045
LEF5006
- CROSLAND:
402
558
- CYCLONE:
PM5S484A
- DAF:
0110371
110371
- DELUXE:
87
WD87
- DEUTZ:
1161212
605400350003
- DOGUS:
Y1005
- DONIT:
4910124
4915246
- DRESSER:
3215194R1
- DYNAPAC:
5S0484
- EIMCO:
2NP550484
- EXMAN:
OE20030
OE21010
OE22050
SFO0484
- FAMEL:
FA11
FA911H
- FIAAM:
FA4225
- FIAT:
9933149
A730X6744GA
- FIL:
ML125
- FILITRONIC:
104Y
- FILT:
FF113
FF460
- FINN EQUIPMENT:
FFP10060
FFP60
- FLO-LINE NO.:
PL558
Q7M3800
Q9F6700
- FORD:
5000849
9576P550484
A730X6744GA
- FREIGHTLINER:
DNP550484
- FURUKAWA:
3215194R1
- GARDNER DENVER:
5S0484
- GIF:
LI336
- GOULD:
P5S484
P5S484A
P7M3800
P7M38003
P9F6700
P9F67003
- GREYFRIARS:
635P
688P
- GROVE:
5S0484
- GT PIECES ET SERVICES:
2240127
- GUARDIAN:
G051161
- GUD:
G108
G686
G878
GP108
- GUIOT:
GE191
- HARMO:
P159
- HAVAM:
HD0260
- HUBER WARCO:
5S0484
- IACOVOU:
4W4840
- INGERSOLL RAND:
4W4840
- INTERNATIONAL:
998451R91
- ISUZU:
6114505100
- KENWORTH:
432704
- KHD:
1161212
- KNECHT:
AF19
AF29
EN241
EN2410
HX22
OX3
OX56
- KOMATSU:
1306048140
1452922430
1454922430
1454932430
1459432430
1541912130
1754314130
4D155A5523
6003200110
6110535120
6110535120W
6110535120WP
6114505100
6120505100
6120505101
6120505102
6120505103
6610535120
PB0502
- KRALINATOR:
KL802
L802
L853
L859
- LEE ENGINEERING:
LR11
- LEROI:
43274
5S0484
5S484
A43274
- LETOURNEAU:
PB0502
- LIMA:
5S0484
- LOCKHEED:
574153
AP3368A
AP3408A
AP547
AP5471A
APH3390A
FH153
LK547
- LOESING:
025006
25006
- MAN:
90801195131
- MARINE PERFORMANCE:
MPL5539
MPL740
- MASTE:
D93
- MISFAT:
12543100
- MWM:
605400350003
- NELSON:
83239A
83239B
83239D
83239E
83239F
88152A
88152B
88152C
88152D
88152E
- NELSON WINSLOW:
W5S484
W5S484P
W7M3800
W7M3800B
W7M3800G
W7M3800P
W7M3800PG
W9F6700
W9F6700G
W9F6700P
W9F6700PG
- NEW HOLLAND:
A730X6744GA
- ORENSTEIN & KOPPEL:
103820
- P.B.R.:
AC1025
AC3143
AI3019
- PAYHAULER:
159590R91
- PERMATIC:
FH120
- PERRY:
PL87
- PHILLIPS 66:
P5
- POSTAS:
YF1104
- PURFLUX:
L503
LS503
- PUROLATOR:
EP1321
FA582
L50005
L57151
MF63B
OX3
OX56
PM2151
PM5048
R5
- QUAKER STATE:
QSC191
QSC191A
- RENAULT VI:
0004307426
0004402531
0024563011
0024568011
0024568658
0024586011
0025568011
24563011
24568011
24568658
24586011
25564103
25568011
4307426
4402531
6005019809
H1081
- ROL-PAK:
CT4X9BP
CT4X9FF
CT4X9HYD
CT4X9SF
CTQ4X9BP
CTQ4X9FF
CTQ4X9SF
- ROMAN:
LU484
- SAVARA:
202820
920019
92001917
92067517
- SDMO:
330560143
- SOPARIS:
CAP397
CAP64
- STAY READY:
SRPCAT3800
SRPCAT6700
- STEIGER:
28024
- TECHNOCAR:
OP191
- TECNO COMP:
TE801
- TEHO:
5093
5181
D181
D93
- TEREX:
103820
2355484
- TFMC:
T61165
- TIM:
1W7339
1W7399
4W4840
4W4926
4W7840
555484
5S5484
7M3800
7M7176
7S6638
9F6426
9F6427
9F6428
9F6430
R24926
- TOWMOTOR:
0350719
350719
5S0484
5S484
- TRUCK CARE:
7100830
- TWIN DISC:
M21881
- UFI:
2543100
- UNITED CENTRAL INDUSTRIAL SUPP:
688480
- UNITED ENGINE LIFE:
CP3800
CP3800P
CP6700
- VMC:
HF550484
LF550484
- WABCO:
PB0502
- WALGAHN-MOTORENTECHN:
00811309
811309
- WARTSILA:
OB1002320
OB1002350
- WGB:
S51CP
- WHITE:
2LB0611
43274
848012
- WINSLOW:
CL7M3800
W5S484
W5S484P
W7M3800
W7M3800B
W7M3800G
W7M3800P
W7M3800PG
W9F6700
W9F6700G
W9F6700PG

Aplicações
- ATLAS COPCO:
PT900CD
- CHICAGO PNEUMATIC:
750RSO-1
- GARDNER DENVER:
105
160 SERIES
210 SERIES
250
600DE
SP250
SP365
SP600
WBG315D
WBH365
WBK500D
WH420DA
WH500D
WH500TM
WHF210D
- JOY:
RPS750
- LEROI:
105D
160G
210D
315D
370
370D
420
420D
500D2
600D2
LRD2C
LRD2W
- AVELING-BARFORD:
CENTAUR 35
CENTAUR 40
CENTAUR 50
- BARBER-GREENE:
170
60
70
- DEUTZ-FAHR:
DP2100
DR1800P
- BARBER-GREENE:
777
TA77
- BARBER-GREENE:
828
- BARBER-GREENE:
KA60
KA70
KB60
KB70
KS70
- BARBER-GREENE:
SB170
- BROYT:
X4
- GRADALL:
HOPTO H900A
- ORENSTEIN & KOPPEL:
RH50
- CATERPILLAR:
1673
1673C
1674
3406
D11000
D13000
D17000
D8800
G333
G333A
G333B
G333C
G342
G342C
G342F
G348
G349
G379
G398
G398A
G399
- DEUTZ:
BF12M716
BF16M716
BF6M716
BF8M716
F12M716
- KOMATSU:
4D120
4D130
S4D120
S4D130-1
S4D155
SL4D130-1
- MWM:
D232-6
D232-8
TD232-6
TD232-8
- CATERPILLAR:
3306
3306B
- CATERPILLAR:
518 II
- FRANKLIN:
195BC
- CATERPILLAR:
621
623
627
631E
637
641
651
657
666
- STEIGER:
COUGAR
COUGAR II
- CATERPILLAR:
627B
641B
650B
651B
660B
666B
DW10
DW15
DW15C
DW15E
DW15F
- KAELBLE:
PR615
PR800HT
PR800T
- KOMATSU:
WD222
WS16-2
- CATERPILLAR:
62K1-3389 920
62K3394-62K3394 920
- CLARK:
III 55
III 75
III 85
III 85A
- CATERPILLAR:
AH40
AH46
AH52
AH60
- HYSTER:
150E
185
200
225E
250E
300E
450A
451A
455A
458
500A
H150E
H185
H185E
H200
H200E
H225E
H250E
H250F
H300E
H30F
H30H
H30HE
H30UE
H30YE
H60F
H60H
HC180E
M200E
M200F
M300E
SC150
SC160
SC180
SC200
TC150
TC160
TC165
TC180
TC200
TC225
H H200E
RC RC150
RC RC160
RC RC180
RC RC200
- TOWMOTOR:
AH40
AH46
AH52
AH60
AM36
AM40
AM46
AM52
AM60
- CEDARAPIDS:
BSF-3R
- DYNAPAC:
CC25A
- HYSTER:
C450A
C451A
C455A
C458
C500A
- KOMATSU:
WF22AT-2
WF22T-2
- GRADALL:
G600
- GRADALL:
HOPTO H1900
- KOMATSU:
PC20HT-1
- LINK BELT:
LS3500
LS4000
- GRADALL:
M2460
- P & H:
420
425
440
525
535
550
- GROVE:
TM400
- IKARUS:
200 216
- KENWORTH:
K100
W900
- RENAULT VI:
CBH CBH280 1986
CLM CLM280 1986
G G280 1990
G280 MANAGER 1990
GBH GBH280 1980
GR GR280 1980
TBH TBH280D 1980
TLM TLM280 1980
TLR TLR280 1980
TR TR280 1980
- KOMATSU:
120C
- LECTRA HAUL:
BD180
MARK 30
- UNIT RIG EQUIPMENT:
BD180
BD180 LECTRA HAUL
MARK 30 LECTRA HAUL
- KOMATSU:
D12
D120
D120-18
D120A-18
D125
D125A
D125A-18
D150A-1
D155A-1
D155C-1
D155S-1
D355-1
D355A
D355A-1
D355A-3
D35A-15
D5015
D5016
D50A
D50A-11
D50A-15
D50A-16
D50F-16
D50P-11
D50P-15
D50P-16
D50PL-15
D50PL-16
D50S-11
D50S-15
D50S-16
D535S-15
D53A
D53A-15
D53A-16
D53P-16
D53S-15
D53S-16
D55
D55-3
D55S
D55S-2
D55S-3
D57-1
D57S-1
D60
D60A-3
D60A-6
D60E-6
D60P
D60P-3
D60P-6
D60PL-6
D60S
D60S-3
D60S-6
D65A
D65A-6
D65E-6
D65P
D65P-6
D65PL-6
D65S-6
D75S
D75S-2
D80-12
D80-6
D80-7
D80-8
D80A-12
D85A
D85E-12
D95S-1
DA85A-12
- KOMATSU:
GD30-5M
GD31-3H
GD310RC-3A
GD313A
GD31RC-3A
GD37-5H
GD500R-1
GD500R-2
GD655A-1
GD655R-1
GD705R-1
GD705R-2
- KOMATSU:
WF22A-2
- LINK BELT:
LS3000
LS5000
LS98
