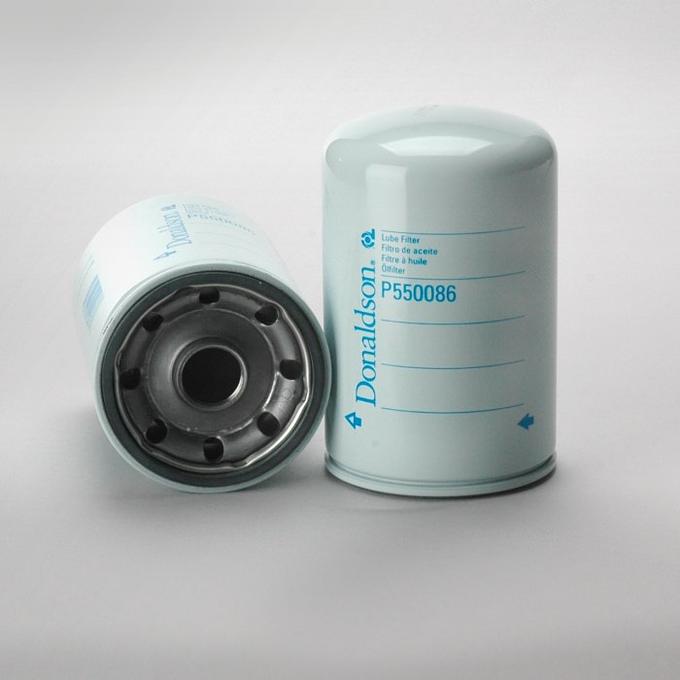

Filtro de Óleo Donaldson P550086

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Marca: Donaldson
Código: P550086
Tipo: Filtro Óleo
Diâmetro exterior: 108 mm (4.25 inch)
Tamanho da rosca: 1 1/8-16 UN
Comprimento: 167 mm (6.57 inch)
D.O. de gaxeta: 99 mm (3.90 inch)
Identificação da junta: 90 mm (3.54 inch)
Eficiência 50%: 20 micron
Teste de Eficiência Std: ISO 4572
Válvula de desvio: Yes
Ajuste da válvula de desvio LR: 1.8 bar (26 psi)
Ajuste da válvula de desvio HR: 2.1 bar (30 psi)
Tipo de mídia: Cellulose
Rebentamento de colapsos: 10 bar (145 psi)
Tipo: Full-Flow
Estilo: Spin-On
Aplicação principal: KOMATSU 6136515120

Conversões
- AC DELCO:
PF2157
- ALCOA MARINE:
KO1568
- AMERICAN MOTORS CORPORATION:
KO1568
- AMERICAN PARTS:
92444
- ASAHI:
KO1568
- ATLAS COPCO:
29005120
2900512000
6136515120
- BEML:
30Z5180495
- BENGBU RATA:
JX1011
- BERGERAT MONNOYEUR:
E6620
- BIG A:
92444
- CATERPILLAR:
3I1482
5W3407N
- CHINA LOCAL:
JX1011B
JX1012
JX1013A
- COOP:
FF1106M
- COOPERS:
LSF5016
- FIAAM:
FT5004
- GREYFRIARS:
9009S
- GUD:
Z210
- JCB:
1132401600
KBP0722
- KOBELCO:
VA3424011101
- KOMATSU:
613615120
6136515120
6136515121
613651520
- KRALINATOR:
L227
- LIUGONG:
SP101847
SP110636
- LOESING:
025005
25005
- MITSUBISHI:
3254001600
3254021600
32G4001100
- NORTHERN LIGHTS:
2405701
- ONAN:
1220744
- P.B.R.:
BC1179
- PUROLATOR:
L54514
PER4514
- TFMC:
T50512
- UNITED CENTRAL INDUSTRIAL SUPP:
688216
- VMC:
LF550086
- WALGAHN-MOTORENTECHN:
00811816
811816
- YUCHAI:
1501012000C
6401012210
JX1011B
M30001012240A
YJX6135

Aplicações
- ATLAS COPCO:
QAS125
QAS150
- KOMATSU:
84/100KW EG125-1
EG125B
EG150B
97/116KW EG150-3
31/38.8 KW EG50-2
42.7/50.4 KW EG65-2
56/64 KW EG80-1
- BEML:
BD65
- KOMATSU:
D31-17
D31A-17
D31E-17
D31P-17
D31P-17A
D31P-17B
D31PL-17
D31Q-17
D31S-17
D37E-1
D37P-1
D40-3
D40-5
D40A-3
D40P-3
D40PL-3
D40PLL-3
D41-3
D41-5
D41A-3
D41E-3
D41P-3
D41Q-3
D41S-3
D5017
D5018
D50A
D50A-16
D50A-17
D50F-16
D50F-17
D50P-16
D50P-17
D50PL-16
D50S-16
D53
D53-18
D535PL-17
D53A
D53A-16
D53A-17
D53P
D53P-16
D53P-17
D53S-16
D53S-17
D571B
D57S-1
D58-1
D58E-1
D58P-1
D58P-1B
D60-12
D60-8
D60A
D60A-8
D60E-8
D60F-8
D60P-11
D60P-8
D60PL-8
D60S-8
D63E-1
D65-11
D65-8
D65A
D65A-8
D65E-12
D65E-8
D65F-8
D65P-12
D65P-8
D65PL-8
D65S-8
D66-1
D66S-1
D68-1
D68E-1
D68P-1
D70LE
D70LE-8
- DALIAN FORKLIFT:
CPCD30
CPCD50
CPCD60
- KOMATSU:
FD105
FD135
FD180
FD200-4
FD50
FD60-4
FD FD115
FD FD135-4
FD FD60-3
FD FD60E
DX FD70
- DONGFENG:
DF450
DF454
- LUZHONG:
454
500
504
- HYUNDAI:
ROBEX R110D-7
- KOBELCO:
SK130-8
SK140LC-8
- KOMATSU:
PC100
PC100-1
PC100-2
PC100L
PC100L-1
PC100L-2
PC100N-1
PC100U-2
PC120-1
PC120-2
PC120SS-2
PC150-1
PC150LC-1
PC200
PC200-1
PC200-2
PC200-3
PC200LC-2
PC200LC-3
PC220
PC220-1
PC220-2
PC220-3
PC220LC-2
PC220LC-3
PC300-5
PC300-5C
PC300-6
PC300-6/PC300LC-6
PC300LC-5
PC300LC-6
PC340-6K
PC340LC-6K
PC340LC-6K-J
PC350-6
PC350LC-6
PC80-1
PF5-1
- MITSUBISHI:
MS580
- NEW HOLLAND:
E E135B
E E135BSR
- KOBELCO:
SK75
- KOMATSU:
1201
PC150
PC200
PC360-6
PF510
PF520B
PF530
PF540
- KOMATSU:
4D105-5
4D130
6D105
6D125-1
S4D105-5
S4D130-1
S6D105
SA6D110
SL4D130-1
- KOMATSU:
515-2
530
540
JH63-2
W120-2
W120-3
W20-1
W30-1
W40-1
W40-2
W60
W60-1
W60-2
W70
W70-1
W70-2
W70-3
W90-2
W90-3
WA200
WA200-1
WA250
WA250-1
WA300-1
WA300-3
WA320-1
WA320-3
WA350-1
WA350-3
WA380-1
WA380-3
WA400-1
WA400-3
WA420-1
WA420-3
WA70-2
WA90-2
WA90-3
WA WA350-3-X
WA WA400-3A-S
- LIUGONG:
ZL30E
- XCMG:
LW300K
- KOMATSU:
BP500
- KOMATSU:
BR300S-1
- KOMATSU:
EC105Z-1
EC170Z-1
EC210Z-1
EC75Z-2
EC75Z-3
- KOMATSU:
GD200A
GD200A-1
GD300A-1
GD355A
GD405A-1
GD500R
GD500R-2
GD500R-5
GD505A
GD505A-2
GD505A-3
GD505R-2
GD521A-1
GD521R-1
GD523A-1
GD523R-1
GD600R
GD600R-1
GD600R-3
GD600R-5
GD605
GD605A-3
GD605A-5
GD611R-1
GD613A-1
GD613R-1
GD615A
GD615R-1
GD621A-1
GD621R-1
GD623A-1
GD623R-1
GD625A-1
GD650R-3
GD655-3
GD655A-3
GD655R-3
GD663A-1
GD705R-4
GF505A
R2
- KOMATSU:
JV100-1
JV100A-1
JV100WA-1
- KOMATSU:
JV100WP-1
- KOMATSU:
LW160-1
LW200L-1
- KOMATSU:
PW100
PW100-1
PW200
- NISSAN:
CPB12
CPC12
CPC12BLT
- UD TRUCKS:
UD550T
- XGMA:
XG932
