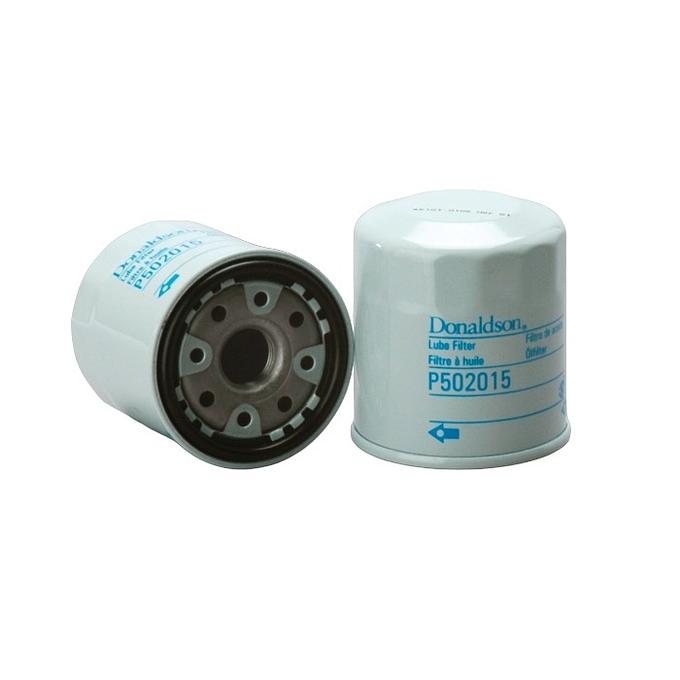

Filtro de Óleo Donaldson P502015

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Outer Diameter: 65 mm (2.56 inch)
Thread Size: 3/4-16
Length: 74 mm (2.91 inch)
Gasket OD: 63.2 mm (2.49 inch)
Gasket ID: 55.5 mm (2.19 inch)
Efficiency 50%: 20 micron
Efficiency Test Std: JIS D 1611
Anti-Drainback Valve: Yes
Bypass Valve: Yes
Bypass Valve Setting LR: 0.8 bar (12 psi)
Bypass Valve Setting HR: 1 bar (15 psi)
Media Type: Cellulose
Collapse Burst: 6.9 bar (100 psi)
Type: Full-Flow
Style: Spin-On
Primary Application: TOYOTA 9091503001

Conversões
- A P PARTS:
AP3568
LK3568
- AC DELCO:
X72
88905889
PF1219
PF1233
SD3
PF54
X18
X20
- AGCO:
77201898
- ALCO:
SP1008
SP991
SP926
SP925
- ALCOA MARINE:
TO137
- ALFA ROMEO:
114212580390
- ALLIS-CHALMERS:
721014983
- ALLOY:
ABH966
- AMERICAN MOTORS CORPORATION:
SFO1001
T1636
VO40
SKC1109
TO137
KC110
J1312010
SC110
4100P0624
YC110
OC18090
OC18140
W6880
- AMERICAN PARTS:
2055
- AMSOIL:
EAO09
SDF10
- ARMAFILT:
O77904
O791003
- ASAHI:
723K
722K
137K
TO137
TO134
NO244
- ATLAS:
G80
M64
M40
M59
- AUTO PAR:
FE308
- AUTO PRIDE:
CF410AP
- BIG A:
92288
92395
92366
92625
- BMW:
11421267597
11421276850
11421278059
11429055001
11429061197
1250534
11421258039
- BOBCAT:
6513601
- BOSCH-REXROTH:
OF107
OF106
0986452017
O317
O004
P2028
0451103043
0451103050
0451102002
72130
72107
OF130
OF136
986452028
986452917
986452928
72166
- BRIGGS & STRATTON:
820314
- CAM2:
C4476
- CASE/CASE IH:
C122
A46293
A46158
- CASITE:
CF410
- CHAMP:
PH2821
PH2821A
- CLARK:
6513601
- CLEAN:
DO217
- CLUB CAR:
1016467
- CONOCO:
CN2951
- COOPERS:
Z525
Z1038
Z90
Z121
Z963
AZL005
AZL027
Z25
- CROSLAND:
691
2077
2079
366
349
- CUB CADET:
ME122073702
- CUSHMAN:
833438
- DAEWOO:
D490652
- DAIHATSU:
1560187205000
1560187203
1560187103000
1560187201000
1560187107
- DANIEL DOYEN:
DOF8102
- DENSO:
1501000
1150101800
- DEUSCH:
D368
- DITCH WITCH:
194108
- DONIT:
4310105
- DRESSER:
78641C1
- ECHLIN:
OF50
- EXMAN:
W6880
SKC1109
SC110
YC110
VO40
J1312010
OC18140
OC18090
OC18020
SFO4791
SFO1001
T1634
T1636
SFO3051
KC110
4100P0624
- FACET:
966
L966
346
L183
- FAMEL:
FT4888
- FEDERAL MOTORS:
FMS2167
FMS2017
- FEDERATED:
LF410F
- FIAAM:
FT4756
FT4888
FT4899
FT5272
FA4531A
FT4933
- FIAT:
4469396
4469397
4469398
4469399
4469400
4434791
5939832
- FIL:
ZP507
- FILT:
FF425EC
- FIRESTONE:
TF346
TF2951
- FORD:
FONN6714BA
SBA140516130
5009088
EFL89
81SM6714A2A
9576P550534
- FSA:
FO1036
- GEHL:
611990
- GENERAC:
070185D
070185E
070185B
70185
- GIF:
GL347
GL215
- GOODYEAR:
2224523
- GRANT:
PH2840
- GRAVELY:
43594
- GREYFRIARS:
970S
9032S
992S
- GROUP 7:
V183
- GUD:
Z152
Z25A
- GUIOT:
GH4600
- GULF:
GF209
- HYSTER:
3000059
- IAPCO:
OF1
- IHI:
OE28
- INTERNATIONAL:
78641C1
- ISEKI:
62132400020
- JOHN DEERE:
AM105172
AM105555
AM107423
HE1220338
AT1220338
ET15499
AM101054
- JOY:
LT4FILTER
- KAWASAKI:
ET15499
490657010
490652001
490652074
490652078
490652071
490652062
1150101220
160971069
- KENDALL:
K33
- KHD:
1163420
- KNECHT:
OC25
AW3
AW29
AW40
AW59
AW75
AW93
AW106
AW118
AW132
AW14
OC74
OC89
FO318
OC216
- KOEHRING:
5710631
05710631
- KOHLER:
359771
- KOMATSU:
Z141520801B01
- KRALINATOR:
L33
L210A
L24R
- KUBOTA:
490652074
490652078
E719532430
- LAZORLITE:
U111570
U111589
L111224
L111244
L112216
U112038
L111830
L111899
DT195
- LEE ENGINEERING:
LF28
LF2835
LF2840
LF2840HP
LF2816HP
LF2821HP
LF2821A
- LEYLAND-DAF (LDV):
3H2135
3H2139
8G618
- LISTER PETTER:
20155373
- LOCKHEED:
LK3840
LK3568
- LPM:
05731725L1000
- LUCAS:
F664
F674
F684
F622
F5578
F6586
F6613
F6496
F6505
- MANITOU:
554487
- MASTE:
DK51
DK92
- MECHANICS CHOICE:
MOF4967
- MERCEDES-BENZ:
11421276850
- MISFAT:
12313102
- MORBARK:
29134122
- NEW HOLLAND:
490652078
- NISSAN/UD TRUCKS:
1520801B15
31725L1000
- NKK:
4TP119
- ONAN:
122073703
122073702
1220737
- OPEL:
650352
7965051
- ORENSTEIN & KOPPEL:
103959
- PHILLIPS 66:
PO1394
PO258
- PMC:
PE811
- POWER BOSS:
303662
- POWER-FLO:
SL14476
LER28
- PRO GAUGE:
PGO4476
- PRO-TEC:
154
- PRONTO:
PO4476
PO4967
- PURFLUX:
LS155
LS711
LS743
LS731
LS504
- PUROLATOR:
FCO258
PC26
PC321
FCO201
PER183
OC95
PL14476
PC201
L22821
PC20
PER2821A
PER275
PER4476
L14476
L10183
- QUAKER STATE:
QS2951
QS4967
QS3816
QS46
- ROCKHILL:
61394
- SEARS:
TP26
D10
45206
- SECURITY:
PH2840
SO2840
- SHELL:
SH525
S50
S39
- SOFIMA:
S3430R
S3263R
S2327R
092326340
- SOPARIS:
CV395
- STENSELE:
54067
120934
120990
120634
- STRUEVER:
1163420
- SUBARU:
2486580100
- SULLAIR:
400064
- SUNOCO:
O24
O25
- SUZUKI:
1651073002
1651073012
1651073013
- TECALEMIT-TJ:
FB2063
FB5309
FB5306
R343
- TECHNOCAR:
R83
R54
- TEHO:
OK75
4174
- TENNANT:
2486580100
- TEREX:
103959
- TEXACO:
TFC521
TFC521B
TFC519B
TFC519
TFC525
TFC525B
- TIM:
9Y4492
- TORO:
1083842
NN10684
820314
- TOYOTA:
90915YZZA5
90915YZZC3
90915YZZF2
90915YZZJ1
982202003
ADT32110E
ADT32109E
1560113011
1560101010
1560113010
C012000013
90915YZZE1
C01200D013
1560187204
1560187104
0982202003
8922002005
892202005
9008091045
9008091034
9091503001
9008091058
1150101291
9091510003
1150101670
9091510001
90915YZZA2
90915VZZA2
90915TA001
1560013051
1560016020
- UFI:
2326340
2326300
2327000
2313100
2316900
092326340
- UNION 76:
PF2874
- UNION CITY BODY:
C170
- UNIPART:
GFE246
GFE117
GFE50
GFE148
GFE139
GFE164
107020
- UNOCAL:
PF53
SD3
C121
PF2816
PF2821
- V.A.G.:
035115591
- VERMEER:
180005593
20775001
- VIC:
C106
C110
- VMC:
LF502015
- VOLKSWAGEN:
035115591
- VOLVO:
35115591
035115591
- WAKO:
LO425K
- WALGAHN-MOTORENTECHN:
00811314
811314
- WARNER & SWASEY:
WPH2840
PH2840
- WARTSILA:
O791003
O77904
- WAUKESHA:
208203
- WESTERBEKE:
35595
- WIPAC:
CA127
CA117
- WORLDPARTS:
W27320
W27348
W27331
W27389
W27375
W27404
- XSV:
X4477
Aplicações
- CASE/CASE IH:
2870
4849
633
4000 4894
- ISEKI:
SL SL 14 HYDRO
TF TF 321
TF TF 325
- JOHN DEERE:
100 180
200 245
200 260
300 320
400 425
400 445
- KUBOTA:
T1770
T1870
- CASE/CASE IH:
CUB CADET 982
- JOHN DEERE:
112L
160
165
170
175
185
2500
2500A
2500E
647A
657A
667A
737
757
F510
F525
F710
F725
G100
GT225
GT235
GT235E
GT242
GT245
GT262
GT275
GX255
GX325
GX335
GX345
GX95
L110
L120
L130
LT133
LT150
LT150G
LT150H
LT155
LT160
LT166
LT170
LT180
LTR166
LTR180
LX172
LX173
LX176
LX178
LX186
LX188
LX255
LX266
LX277
LX279
LX280
LX288
RX95
SRX95
SST15
SST16
SST18
SX95
200 285
300 345
300 GX335
QUIK TRAK 647
QUIK TRAK 657
QUIK TRAK 667
ZTRAK 717A
ZTRAK 727A
ZTRAK 777
ZTRAK 797
GT GT242
X X300
X X304
X X320
X X324
X X340
X X485
X X500
X X520
X X534
X X540
X X575
X X585
X X700
X X720
X X720 SE
X X724
X X728
X X728 SE
- NEW HOLLAND:
MY16
MY17
MY19
MZ14H
MZ16H
MZ18H
MZ19H
- SIMPLICITY:
LEGACY
LEGACY XL
- DAIHATSU:
T-KB27V
- TOYOTA:
1300
1400
TOWNACE KR10
TOWNACE KR11
- GEHL:
HL2800
SL3310
SL3610
SL4510
- HYDRA MAC:
11C
12C
14C SERIES
- JOHN DEERE:
300 325
- INGERSOLL RAND:
P75WL
- JOHN DEERE:
1200A
AMT
AMT622
AMT626
GATOR
GATOR CX
GATOR HPX
GATOR TH
GATOR TS
GATOR TX
GATOR XUV 620I
TRAILGATOR HPX
TRAILGATOR TX
TURFGATOR TX
XUV 625I
XUV 825I
XUV 825I S4
- KAWASAKI:
MULE 4010
MULE 600
- KAWASAKI:
MULE
MULE 3010
- KOMATSU:
PC05
- NISSAN:
C2700
C3000
C3500
C4000
CF01
CHF03
CPF01
EF02
F01
F05
FG101
FG102
FG204
H02
P2700
P3000
P4000
P5000
QF02
QF03
- TOYOTA:
5FD20
5FD25
5FDF10
5FDF14
5FDF15
5FDF20
5FDF25
5FG10
5FG14
5FG15
5FG18
5FG23
5FGF10
5FGF20
- ONAN:
BG
