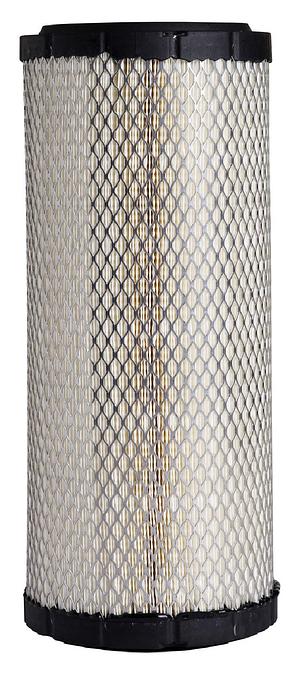

Filtro de Ar Fleetguard AF25557

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Especificações
Overall Length 355.34 mm (13.99 inch)
Largest OD 163.06 mm (6.42 inch)
Largest ID 95 mm (3.74 inch)
Fin Diameter 0 mm (0 inch)
Primary Air Filter Used With
AF25558

CONVERSÕES
MANN C17337
AHLMANN 4198305A
AMMANN 45358520100
JOHN DEERE AT171853
ATLAS 2981113
BOMAG 5730100
BOMAG 38052098
CASE NEW HOLLAND 84217229
CASE IH 222421A1
NEW HOLLAND 87682993
NEW HOLLAND 87682989
NEW HOLLAND 87631623
CASE IH 87418364
CASE IH 87438248
CASE IH X2950576
CASE IH 6190627M1
NEW HOLLAND 86555826
CASE IH KMH0781
CASE IH 252640A1
NEW HOLLAND 84036676
NEW HOLLAND 47137832
NEW HOLLAND 76094056
CASE-IH 47132345
CATERPILLAR 1106326

APLICAÇÕES
AEBI MFH 5000 2003
AEBI MFH 2500 2003
AEBI MFH 5000 2000 2003
AHLMANN AL100 TURBO BF4L2011 2004
AHLMANN AS6/S BF4L1011 1994
AHLMANN AS90 BF4L1011 2000
AHLMANN AS6 BF4L1011 1994
AHLMANN AL80 F4L2011 2004
AHLMANN AS70 BF4L1011 2000
AMMANN AV70-2 4BT3.3 TIER2
ATLAS AR65-2 BF4L1011
ATLAS AR65-3 BF4L1011FT
ATLAS AR70 BF4L1011F
ATLAS AGT 2010
ATLAS AR75S TD2011 L04 2011
ATLAS AR80 DEUTZ 2010
ATLAS AR75S BF4L2011 2004
ATLAS COPCO QAS 58 4045T
ATLAS COPCO FLEXIROC T20 QSB3.3 TIER 3
ATLAS COPCO XAS 90 4039D
ATLAS COPCO QAS 78 4045T
ATLAS WEYHAUSEN AR65S BF4L2011 2004
ATLAS WEYHAUSEN AR62E2
ATLAS WEYHAUSEN AR52E BF4L1011T
ATLAS WEYHAUSEN AR65P BF4L2011 2005
ATLAS WEYHAUSEN AR62D F4L1011
ATLAS WEYHAUSEN AW1070 1104D-44T
ATLAS WEYHAUSEN AR55 F4L2011 2001
ATLAS WEYHAUSEN AR65 F4L2011 2001
ATLAS WEYHAUSEN AR62E
ATLAS WEYHAUSEN 45
ATLAS WEYHAUSEN AR82E2
ATLAS WEYHAUSEN AR80E TCD3.6 L4
ATLAS WEYHAUSEN AR46E2
ATLAS WEYHAUSEN AR65S BF4L1011F
ATLAS WEYHAUSEN AR70.3
ATLAS WEYHAUSEN AR72E
ATLAS WEYHAUSEN AR65 SUPER BF4L2011 2002
ATLAS WEYHAUSEN AR65 F4L1011 1998 2001
ATLAS WEYHAUSEN AR80
ATLAS WEYHAUSEN AR52E2
ATLAS WEYHAUSEN 85
AUSA D600APG V3300DI-T 2006
AUSA D600APG V3300T 2006
AUSA D600APG V3800-D1-T 2006
BOMAG BW24R
BOMAG BF300C V3307-T 2008
BOMAG BW141AD-4 TD2011 L04
BOMAG BW154AD-5 V3307CR-T 2013
BOMAG BW145D-5 TD2.9 L4
BOMAG BW184AD CUMMINS
BOMAG BW154AD-5 KUBOTA 2013
BOMAG BW151AD-5 KUBOTA 2013
BOMAG BW151AD-5 V3307CR-T 2013
688G SERIES 2
580SN TIER 4A NCC564000 2012
590SR 2004 2007
420CT SERIES III IVECO F5CE5454B
CX75SR ISUZU 2002
590SM+ SERIES 3 TIER 3 2008
580SR PLUS SERIES 3
580 SUPER L
580L SERIES 2
580N TIER 4A NCC560000 2012
580 SUPER M SERIES 3
580 SUPER M+ SERIES 2
590 SUPER M
440 SERIES 3
590SN TIER 3
590SR TIER 3 445T
590SR SERIES 2 445T/M2
CX135SR ISUZU 2002
8230 FPT 2013 2014
580SN 445TA/E3 2010
445CT SERIES III N8M496460 2009
580ST 445TA/EEA 2010
695ST 445TA/EGH 2010
590SM SERIES 3 TIER 3 2008
590SN TIER 4A 2012
CX160D LC TIER 4B 2015
570LXT SERIES 2
580SN TIER 3 58SN01
590ST 445TA/EGH 2010
695 SUPER M 2004
TR270 432T/M3 2011
580SN WT TIER 4A 2012
SR200 432T/M3 2011
SR220 432T/M3 2011
430 SERIES 3 432T/M3
570MXT 4T-390
580SR SERIES 2 445T/M2
SR220 TIER 4 2013
TR320 TIER 4A 2012
570MXT 4-390
590 SUPER L SERIES 2
590 SUPER M SERIES 2
590 SUPER L
580N 445T/M3 2010
686GXR SERIES 1 & 2
695SR 2007
590SR SERIES 3
570MXT SERIES 3 2008
TR320 432T/M3 2011
WX150 2002
420 SERIES 3 432T/M3
580SR SERIES 3
580SN WT TIER 3
CX130D LC TIER 4B 2015
580N TIER 3
580 SUPER N 445TA/E3 2010
580T 445TA/ML5 2010
MX115C 1006-60T 1999 2001
SR250 TIER 4A F5C 2011
580 SUPER L SERIES 2
580 SUPER M SERIES 2
580 SUPER M+ SERIES 3
590 SUPER N 445TA/E3 2010
410 SERIES 3
435 SERIES 3 432T/M3 2011
445 SERIES 3 432T/M3
JX100U 8045.25
C100 PERKINS FASTRAM
CX80 PERKINS
AXIAL-FLOW 5088 CUMMINS 2007 2011
AXIAL-FLOW 5150 CURSOR 2020
AXIAL-FLOW 7010 IVECO 2007
CX70 PERKINS
AXIAL-FLOW 6088 CUMMINS 2007 2011
9120 2008
7230 2013 2014
AXIAL-FLOW 7150 FPT 2020
AXIAL-FLOW 5150 FPT 2020
AXIAL-FLOW 7150 CURSOR 2020
AXIAL-FLOW 7088 CUMMINS 2007 2011
9230 FPT 2013 2014
8010 2006 2008
7120 IVECO 9.0L 2008
JX90U 8045.25
C80 PERKINS FASTRAM
CX90 PERKINS
AXIAL-FLOW 5140 FPT 2016
7088 2008
5130 COMMON CAB TIER4 FPT 2013 2014
6088 2008
9120 2008 2012
C90 PERKINS FASTRAM
440CT SERIES III IVECO 2008 2011
AXIAL-FLOW 8250 FPT 2020
AXIAL-FLOW 7240 FPT 2016
AXIAL-FLOW 5140 CURSOR 2016
AXIAL-FLOW 9250 FPT 2020
8120 IVECO 2008
5088 2008
580M SERIES 2
AXIAL-FLOW 7120 IVECO 2008 2012
AXIAL-FLOW 7250 FPT 2020
AXIAL-FLOW 6140 FPT 2016
AXIAL-FLOW 6150 CURSOR 2020
AXIAL-FLOW 8240 FPT 2016
8120 2008 2012
7240 2016 2017
AXIAL-FLOW 9120 IVECO 2008 2012
7120 2008 2012
7130 COMMON CAB TIER4 2013 2014
6140 2016 2017
5140 TIER4B 2016 2017
MX80C FASTRAM 1004.40TW 1999
TV380 FPT 2012 2017
FARMALL 70 2012
MX100C FASTRAM 1004.40TW 1999
580M SERIES 3
AXIAL-FLOW 7140 FPT 2016
7140 2016 2017
AXIAL-FLOW 9240 FPT 2016
AXIAL-FLOW 6150 FPT 2020
AXIAL-FLOW 8010 IVECO 2007
AF7010 IVECO 2007
6130 TIER4 2013 2014
C70 PERKINS
TR270 TIER4B FPT 2013 2019
CX100 PERKINS
AXIAL-FLOW 8120 IVECO 2008 2012
AFX8010 CURSOR 10 2003 2006
AXIAL-FLOW 6140 CURSOR 2016
AXIAL-FLOW 7140 CURSOR 2016
CATERPILLAR CS433E 3054
CATERPILLAR CS433C 2TN257 258 CAT 5HK13000 UP 2011
CATERPILLAR TH82 3JN1
CATERPILLAR TH63 5WM1399 1587
CATERPILLAR IT14G 1WN1334 1378 2011
CATERPILLAR IT14G KZN1-UP 2011
CATERPILLAR CB544 2FS1-UP 2011
CATERPILLAR CB544 8FM1-UP 2011
CATERPILLAR 236B SERIES 2 3044C 2012
CATERPILLAR 914G2 C4.4 2014
CATERPILLAR 906H2 C3.3B 2012
CATERPILLAR 236B2 HEN1-UP
CATERPILLAR 908H MXF1 UP 2011
CATERPILLAR 907H C3.4 2012
CATERPILLAR 914G 7ZM654 UP 2011
CATERPILLAR 914G 9WM1500 1879 2011
CATERPILLAR 914G 9WM1880 UP 2011
CATERPILLAR 907H SJM1 UP 2011
CATERPILLAR 914G 7ZM1 3054C DIT
CATERPILLAR 910K C3.8B 2014
CATERPILLAR 426C 7WN1 938
CATERPILLAR 426C 6XN4482 4485
CATERPILLAR 428C 2CR1 422
CATERPILLAR 426C 1MR1 955
CATERPILLAR 428C 1SR423-UP
CATERPILLAR 420D FDP1-18399
CATERPILLAR 416D BKG1 1299
CATERPILLAR 416D CHW1-UP
CATERPILLAR 416D CXP1-UP
CATERPILLAR 416C 5YN1 15147
CATERPILLAR 416C 4ZN4010 4014
CATERPILLAR 420D BKC920-UP
CATERPILLAR 416D BGJ1 3054B
CATERPILLAR 416C 4ZN4015 4015
CATERPILLAR 416C 4ZN16004 3054T
CATERPILLAR 420D BMC611-1059
CATERPILLAR 424D S5A1-UP 2011
CATERPILLAR 312D KCD1-268 2011
CATERPILLAR 312D RKF1-UP 2011
CATERPILLAR 272C RED1-UP CAT CYM1-UP
CATERPILLAR 246C JAY1 1749 CAT CJS1-UP
CATERPILLAR 246C JAY1750 2059 CAT CYM1-UP
CATERPILLAR 287C GCP1-UP CAT CJS1-UP 2007
CATERPILLAR 277C JWF1-UP CAT CJS1-UP
CATERPILLAR 3054C 3341-UP 2011
CATERPILLAR 3056 7MS1-UP
CATERPILLAR TH63 NA 3NN1
CATERPILLAR PS300B 6HM1 3054T
CATERPILLAR TH407C C3.4B
CATERPILLAR TH417C C3.4B
CATERPILLAR PS150C FPS1-UP CAT CRS1600-UP
CATERPILLAR CP433E 3054C
CATERPILLAR CS433C 1XZ1 UP CAT 7BJ1 UP 2011
CATERPILLAR CS433C 1FS1 UP CAT 5HK1 12999 2011
CATERPILLAR CS433E CFP1-UP 2011
CATERPILLAR CS433C 2TN259 262 CAT 9RM1 UP 2011
CATERPILLAR CS431C 6EN1-UP 2011
CATERPILLAR TH215 CEC1-UP 2011
CATERPILLAR CS431C 9XL204-UP 2011
CATERPILLAR TH103 3PN601 901
CATERPILLAR 312D KCD269-UP 2011
CATERPILLAR 315B 5SW1 3046
CATERPILLAR 242D C3.3B DIT
CATERPILLAR 297C JSP1-UP 2011
CATERPILLAR 236B CAT CJS1-UP 2011
CATERPILLAR 236B 3044C 2012
CATERPILLAR 246C JAY2060-UP CAT CJS1-UP
CATERPILLAR 272D C3.8 2012
CATERPILLAR 262C MST1-UP CAT CJS1-UP
CATERPILLAR 267B CYC1-UP CAT CJS1-UP
CATERPILLAR 3056 1ML1-UP
CATERPILLAR PF300B 6HM196-412 2011
CATERPILLAR PS200B 5JR1 146 CAT 5HK147 UP
CATERPILLAR TH406C C3.4B
CATERPILLAR PS150B 3XR1 UP 2011
CATERPILLAR PS300B 4PN135-364 2011
CATERPILLAR CP433C 2JM508-UP 2011
CATERPILLAR TH210 CEC1-UP 2011
CATERPILLAR TH103 3PN1
CATERPILLAR CS433C 1XZ1 UP CAT 5HK1 12999 2011
CATERPILLAR TH215 CEG1-UP 2011
CATERPILLAR CS433C 3TM614 UP CAT 5HK13000 UP
CATERPILLAR CS433E ASR1-UP 2011
CATERPILLAR 3054T 42K4648 42K4648
CATERPILLAR 428D NF S1K1-UP 2011
CATERPILLAR 438C 9KN561-UP
CATERPILLAR 438C 1JR607-UP
CATERPILLAR 430D BNK5900-UP 3054
CATERPILLAR 436C 2AR312 1849
CATERPILLAR 430D C9P1-UP
CATERPILLAR 436C 1PR313-UP
CATERPILLAR 436C 8TN1220 1220
CATERPILLAR 416C 1XR1 2183
CATERPILLAR 416C 1KR1
CATERPILLAR 416C 1WR1 8115
CATERPILLAR 416C 1BR
CATERPILLAR 416C BGJ1 3054T
CATERPILLAR 236 6LZ1000
CATERPILLAR 248 6LZ402 999
CATERPILLAR 252 5SZ4000
CATERPILLAR TH63 3NN1 1049
CATERPILLAR TH63 5WM1 1393
CATERPILLAR TH83 3KN1
CATERPILLAR TH62 4TM1297-1732 2011
CATERPILLAR TH62 4TM905-1234 2011
CATERPILLAR TH82 3KN1
CATERPILLAR CB545 8FM1-UP 2011
CATERPILLAR 438C 2DR1050-UP
CATERPILLAR 442D BRG1013-UP
CATERPILLAR 438D BPN1 475 2011
CATERPILLAR 438D BPE664 716 2011
CATERPILLAR 436C 8TN1 1219
CATERPILLAR 430D C3J1-UP
CATERPILLAR 436C 1RR498-UP
CATERPILLAR 432D 3054
CATERPILLAR 908 3044C
CATERPILLAR 248 6LZ1595-UP
CATERPILLAR 236 4YZ1068 3999
CATERPILLAR 216 4NZ1 3399
CATERPILLAR 236 5SZ4000
CATERPILLAR 248 FYZ1 3999
CATERPILLAR 246 CED1
CATERPILLAR TH83 3RN1072 1891
CATERPILLAR TH82 3JN689-UP
CATERPILLAR TH62 4TM2306-UP 2011
CATERPILLAR TH82 3JN579 688
CATERPILLAR CB544 8FM149-UP
CATERPILLAR TH63 5WM3816-UP
CATERPILLAR IT14G 1WN1039 1333 2011
CATERPILLAR TH63 5WM2709 3054
CATERPILLAR TH63 3NN1
CATERPILLAR 554 1AM
CATERPILLAR 257B3 C3.4 2012
CATERPILLAR M312 6TL410
CATERPILLAR 907M
CATERPILLAR 906H SJM1 UP 2011
CATERPILLAR 908H CAT CJS1 UP 2011
CATERPILLAR 428D BLL700-UP 2011
CATERPILLAR 428D BMT1618-UP 2011
CATERPILLAR 426C 7WN439-UP
CATERPILLAR 426C 7WN939 1099
CATERPILLAR 428D BNB1 699 2011
CATERPILLAR 426C 1CR1-UP
CATERPILLAR 426C 1ER864 899
CATERPILLAR 426C 6XN4486-UP
CATERPILLAR 428D BLL1 650 2011
CATERPILLAR 426C 1NR954 1049
CATERPILLAR 428C 1HR403-UP
CATERPILLAR 420D BMC1060-UP
CATERPILLAR 416C 4ZN4008 4008
CATERPILLAR 420D FDP1 3054T
CATERPILLAR 420D C2C1-UP
CATERPILLAR 416C 4ZN20525-UP
CATERPILLAR 416C 1WR8116 3054T
CATERPILLAR 416C 1XR2184 2249 3054T
CATERPILLAR 416C 4ZN4018 4027
CATERPILLAR 420D BLN1-10299
CATERPILLAR 416C 4ZN4029 4032
CATERPILLAR 252B3 TNK1-UP 2011
CATERPILLAR M315 7ML860
CATERPILLAR 908M
CATERPILLAR 907H 3044C 2012
CATERPILLAR 907H MJF1 UP 2011
CATERPILLAR 914G 9WM1 3054C DIT
CATERPILLAR 914G PDF1 UP 2011
CATERPILLAR 906H TPE1 UP 2011
CATERPILLAR 906M
CATERPILLAR 428C 2CR423 1049
CATERPILLAR 428C 1SR1
CATERPILLAR 428D BNS1118 1603 2011
CATERPILLAR 426C 6XN3616
CATERPILLAR 426C 7WN1100
CATERPILLAR 428D S7C1-UP 2011
CATERPILLAR 426C 1CR864
CATERPILLAR 428D BMT1 1617 2011
CATERPILLAR 426C 1ZR1 925
CATERPILLAR 416C 4ZN4033 4034
CATERPILLAR 420D BLN10300-UP
CATERPILLAR 416D CKN1-UP
CATERPILLAR 424D BGP1-UP 2011
CATERPILLAR 416D BGJ1050-UP
CATERPILLAR 416D BFP1 12899
CATERPILLAR 416C 4ZN4006 4006
CATERPILLAR 416C 4ZN5635 20487
CATERPILLAR 416C 1XR2250
CATERPILLAR 279D C3.3B 2013
CATERPILLAR 277D C3.3B 2013
CATERPILLAR 3054C
CATERPILLAR PF300B 6HM1-82 2011
CATERPILLAR PF300B 6HM413-UP 2011
CATERPILLAR PS300C PFS1-UP CAT CRS1-UP 2011
CATERPILLAR CS433C 2TN1 256 CAT 7BJ1 UP 2011
CATERPILLAR CS433C 2TN259 262 CAT 7BJ1 UP 2011
CATERPILLAR CS431C 3WZ1-UP 2011
CATERPILLAR CP433E CYE1-UP 2011
CATERPILLAR CS433C 2TN263 UP CAT 5HK1 12999 2011
CATERPILLAR CS423E CFX1-UP 2011
CATERPILLAR CS423E DCL1-UP 2011
CATERPILLAR TH103 3PN902-UP
CATERPILLAR CS423E EAE1-UP 2011
CATERPILLAR 3054E
CATERPILLAR 3054B 5MF1-UP 2011
CATERPILLAR 3054 5YS1-UP
CATERPILLAR PS150C NPK1-UP 2011
CATERPILLAR CS433C 2TN1 256 CAT 9RM1 UP 2011
CATERPILLAR CS433C 3TM614 UP CAT 9RM1 UP
CATERPILLAR CS433C 5BZ1 UP CAT 5HK13000 UP 2011
CATERPILLAR CS433C 2TN257 258 CAT 5HK1 12999 2011
CATERPILLAR CS433C 1XZ1 UP CAT 9RM1 UP 2011
CATERPILLAR CS433C 2TN263 UP CAT 5HK13000 UP 2011
CATERPILLAR CS433E DAC1-UP 2011
CATERPILLAR CS423E ASH1-UP 2011
CATERPILLAR CS433E BTT1-UP 2011
CATERPILLAR C4.4
CATERPILLAR 312B L 3054
CATERPILLAR 442D BRY1 746
CATERPILLAR 442D BRG1 827
CATERPILLAR 438C 1JR1 606
CATERPILLAR 436C 1PR1 312
CATERPILLAR 432D BLD1595-UP 2011
CATERPILLAR 430D 3054 2012
CATERPILLAR 432D S6H1-UP 2011
CATERPILLAR 416C 1LR1
CATERPILLAR 416C BFP1 3054T
CATERPILLAR 908 3054
CATERPILLAR 236 4YZ5751-UP
CATERPILLAR 262 CED1
CATERPILLAR 307 2WM1 UP CAT 5HK12000 UP 2011
CATERPILLAR 248 6LZ1000 1594
CATERPILLAR 312 6GK1
CATERPILLAR 246 5SZ4000 6369
CATERPILLAR 262 CED1 1412
CATERPILLAR CB44B C3.4 2012
CATERPILLAR CB44B C4.4 2012
CATERPILLAR TH62 4TM1733-1954 2011
CATERPILLAR TH62 3LN653-749 2011
CATERPILLAR TH62 3LN797-926 2011
CATERPILLAR TH82 3RN1
CATERPILLAR TH62 4TM1-904 2011
CATERPILLAR IT14G 1WN1379-UP 2011
CATERPILLAR TH63 5WM1778 2708
CATERPILLAR 554 TGH1-UP
CATERPILLAR 430D BNK2502 5899 3054
CATERPILLAR 436C 2AR1850 1850
CATERPILLAR 416C 1BR1
CATERPILLAR 416C 1CR
CATERPILLAR 908 8BS1 3044C
CATERPILLAR 236 4YZ4000 5750
CATERPILLAR 236 4YZ1 1067
CATERPILLAR 246 59203641 3034 3NW17565 2001
CATERPILLAR 262 5SZ4000
CATERPILLAR IT14G 1WN660 1038 2011
CATERPILLAR TH83 3JN1
CATERPILLAR TH83 3NN1
CATERPILLAR TH83 3RN1
CATERPILLAR TH82 3KN458-UP
CATERPILLAR TH62 3LN750-796 2011
CATERPILLAR TH62 3LN927-938 2011
CATERPILLAR TH83 3RN
CATERPILLAR TH82 3KN1 438
CATERPILLAR CB545 2FS1-UP 2011
CATERPILLAR TH63 3NN1050 1059
CATERPILLAR TH83 3RN935 1071
CATERPILLAR CD54 J5R1-UP CAT CRS1-UP 2011
CATERPILLAR 242B3 C3.4 2011
CATERPILLAR 312C L BNN1
CATERPILLAR 252B2 CAT CJS1-UP 2011
CATERPILLAR 236B3 A9H1-UP 2011
CATERPILLAR 236B2 CAT CJS1-UP 2011
