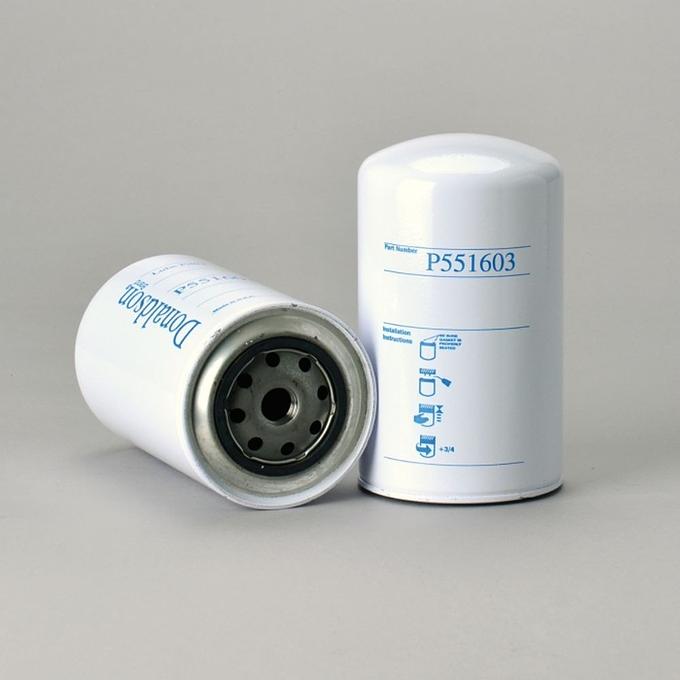

Filtro de Óleo Donaldson P551603

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Marca: Donaldson
Código: P551603
Tipo: Filtro Óleo
Diâmetro exterior: 108 mm (4.25 inch)
Tamanho da rosca: 3/4-16
Comprimento: 170 mm (6.69 inch)
D.O. de gaxeta: 72 mm (2.83 inch)
Identificação da junta: 62 mm (2.44 inch)
Eficiência 99%: 23 micron
Válvula Anti-Drenagem: Yes
Válvula de desvio: Yes
Ajuste da válvula de desvio LR: 2.1 bar (30 psi)
Tipo de mídia: Cellulose
Rebentamento de colapsos: 6.9 bar (100 psi)
Tipo: Full-Flow
Estilo: Spin-On

Conversões
- A P PARTS:
LK3146
- AC DELCO:
X36
- AGRIA:
1909101
- AGRIFULL:
1909101
- ALCO:
SP878
- ALLIS-CHALMERS:
04648371
1901603
1909101
2091847
4008751
4625547
4648371
61660298
- ASAS:
SP409
- BENATI:
1836102
- BOSCH-REXROTH:
9450732003
- CASE/CASE IH:
1836102
4600875
E110776
U1250505

3I1246
- CLEAN:
DO243
DO821
- COMPAIR:
C160128
- COOPERS:
AZL034
LSF5134
Z72
- CROSLAND:
9305
- DONIT:
431091
- FIAAM:
FT4670
FT4670T
- FIAT:
01901603
01909101
1836102
1907566
1909101
2654392
4008751
4597232
4600785
4600872
4600875
4625547
4629544
4630786
4643371
4648371
468371
4730586
4951092
61660298
62775370
70107630
70425547
71901603
71909101
740008751
74008751
74648371
8719501
8820772
8822645
9819501
T0121977
TO121977
- FIATALLIS:
4600875
4625547
4648371
TO121977
- FIL:
ZP514
ZP514A
- FILT:
FF332EC
- FISPA:
FOE020
LI3582
- FORD:
5000863
5009233
5011423
5019427
A730X6714KA
- GIESSE:
CLH342
- GREYFRIARS:
912S
- GUD:
Z49A
Z72
- GUIOT:
GH2824
- HAVAM:
HD0108
- HESSTON:
1909001
- HITACHI:
1909101
L01909101
- IVECO:
1901603
1907566
1909101
4600875
4615547
4625547
4648371
4951092
901272
- JCB:
44647402
- KNECHT:
AW55
OC14
OC308
- LOCKHEED:
LK3146
- MANITOU:
505673
- MARINE PERFORMANCE:
MPL5266
- MASSEY FERGUSON:
993028
- MASTE:
DK21
- MISFAT:
12310700
- NEW HOLLAND:
1909101
- NISSAN/UD TRUCKS:
BC1032
- ORENSTEIN & KOPPEL:
103900
- P.B.R.:
BC1032
- PEGASO:
901272
- PERKINS:
992028
993028
- PERMATIC:
GL337
- POCLAIN:
U1250505
- POWER-PART:
AM042201
- PURFLUX:
LS412
- PUROLATOR:
L17582
L44796
LI3582
OC14
- RENAULT VI:
5001846645
605019733
- ROMAN:
89055016003
LUS103
- SAME:
244191701
- SAURER:
2060462554700
- SAVARA:
92801017
92828717
SO287
- SDMO:
330560206
- SEAT:
ND03028850
- SOPARIS:
CV350
- TECHNOCAR:
R179
R80
- TEHO:
4045
OK45
- TODD GT:
2240063
- UFI:
2310701
- VAPORMATIC:
VPD5037
- VMC:
LF551603
- WALGAHN-MOTORENTECHN:
00811372
811372
- WFZ:
9025516030

Aplicações
- AGRIFULL:
40 40
40 40DT
40 45
40 45DT
50 50
50 50 JOLLY
50 50DT
50 55
50 55 IIF
50 55 IIFDT
50 55 IIV
50 55 IIVDT
50 55C FRUTTETO
50 55CF
50 55CV
50 55DT
50 55DTT
60 60
60 60DT
60 60F
60 65
60 65DT
70 70
70 70C
70 70DT
70 70F
70 70L
80 80
80 80.50
80 80.56
80 80.56DT
80 80.60
80 80C
80 80DT
80 80F
80 80FDT
90 90
90 90DT
A A45
A A50
A A55
A A55L
A A60L
A A65
A A65L
A A70
A A70L
A A80
A C60L
A C60N
A C70L
C C70N
- AL-GHAZI:
480S
640
- ALBAJAR:
P 10
P 420
4400 4420
4400 4480
I 5000
- ALLIS-CHALMERS:
10B
5040
5045
5050
8
8B
9B
FD5
FD5LPG
- CASE/CASE IH:
500 550DT
600 640 DTC
800 850DT
- FIAT:
1000DT
1000N
1100
120C
12L/LC
12R
1300SDT
160.0DT
160.9
355
420
420DT
446
45-76
45.65
45.66
45.66DT
45.66DT VIGENTO
450-8
450DT
455
455C
455CI
460
460DT
460DTV
460V
465C
466
470
470DT
474
480
480 VIGNETO
480-8
480-8DT
480DT
480DTS
4L
4M
5
500
500DT
500DTS
505
505C VIGNETO
505CM
512
513
540DT
540DT SPECIAL
540S
545 SUPER
55
55-76
55-85
55-90
55.46
55.46DT
55.65
55.65 MONTANGA
55.65 VIGNETO
55.66
55.66DT
55.88
55.9
553
565
565C
580
5B
5LP
60
60-76
60-85
60-93
60.65
60.65 VIGNETO
60.66
60.66DT
60.66LP
60.66VF
60.9
60.90DT
600DT
605C
605C SUPER
60CA
640DT
65-46
65-88
65-93
65-94
65.46
65.66
655
665C
66DT
680DTH
7
70-76
70.65
70.65 MONTAGNA
70.66
70.66DT
70.75C
70.9
70.90DT
700E
70C
715DT
72-85
72-93
72-94
755C
756C
766
775C
7B
80-65
80-75
80-76
80.55
80.65
80.66
80.66LB
80.88
80.9
800E
801
805
805C
80C
85-55
850
850 SUPER
855C
88-94
880DF
880DT
9
905C
90C
95
955C
95RS
980DT
9B
SERIES 350 NASTRO D'ORO
SERIES 50
- FIATALLIS:
4M
- KUBOTA:
M6030
- NEW HOLLAND:
100C
120C
1300
3435
3630
3830
3935
4030
4135
4230
440
446
45-66
45-66S
4508
460
4635
465C
466
470
474
50-66
50-66S
505C
5500
5530
555
556
565C
570
60
605
605C
638
640
650
6530
655
655C
665C
666
670
700E
755C
765C
766
800
800E
805C
8066
855C
880
905C
HYDRO 60
STX480
TT55
TT75
- NISSAN:
6090
6100
6120
6125
- SAME:
4 RM
BUFFALO 120
BUFFALO 130
DRAGO 100
DRAGO 2RM
- ALLIS-CHALMERS:
FL10B
FL4C
FL5
FL5B
FL6
FL9
FR7
FR7B
FR9B
- BENATI:
130 RS
16S
19S
- BENFRA:
5524B
- BENATI:
BEN 130PS
BEN 16S
BEN 19S
- BENFRA:
3501
4384
4504
6301
6381
6501
6621
6CB
7483
7503
7511
7543
7543B
7543M
- FIATALLIS:
7D
8 CONVERT
8B
8BTA
8C
AD10B
AD4C
AD7C
AD8
AD8B
AD9
BD10B
BD7C
BD7D
BD8
BD8B
BD9
FD5
FD7
FL10
FL10B
FL4
FL4C
FL4D
FL4L
FL6
FL8C
FL9
FR4
FR9
S15
S9
SL9
SR9
TL5
- NEW HOLLAND:
850
- BENFRA:
3B
3C
3R
4501
4511S
4512
4512S
4514
4524
4534
4554
5512S
5C
5CB
5R
5RB
6512S
6513S
6534
6534B
7512S
7534
7613
8511
8511S
8512S
8513S
8534
8544
8544B
8C
- CASE/CASE IH:
S1500B
S740
S750
- FIAT:
S105
S11HD
S130
S15
S60
S70I
S70M
S9
S90
S90M
- FIATALLIS:
12 R
FB7
FE12
FE12LC
FE12R
S105
S11
S11HD
S11HP
S130
S60
S70I
S70M
S90
S90M
SL11
SR70
SR70M
- FIAT:
100C
- FIAT:
3350
3450
M112AI
M132
M150
M152
MFL110AL
- FIAT:
600
- FIAT:
70
80
- IVECO:
Z 50-10 1980
Z 50-8 1983
Z 55-10 1982
Z 60-8 1980
Z 65-10 1983
Z 79-10 1983
ZETA 50-9 1987
ZETA 65-9 1987
- NISSAN:
BRAVO S
COMMANDO DS
COMMANDO HD
E110
E125
E95
F100
F108
F260
F275
M100
M125
P137
P160
P170
- PEGASO:
1200 1214.14 1987
TECNO 1200 1217.14
TECNO 1200 1217.17
5300 5317 1986
- FIAT:
7D
8 CONVERT
8B
8BTA
8C
AD10B
AD4C
AD7C
AD8
AD8B
AD9
BD10B
BD7C
BD7D
BD8
BD8B
BD9
FB7
FD5
FD7
FL10
FL10B
FL4
FL4C
FL4D
FL4L
FL5
FL6
FL8C
FL9
FR4
FR9
- NEW HOLLAND:
450
455C
500
550
750
- FIAT:
DI20C
DI25C
DI30C
DI35C
DI40C
- FIAT:
FE12
FE12LC
FE12R
SL15
SL9
SR70
SR70M
SR9
TL5
- FIAT:
FL4M
- FIATALLIS:
FL4M
- FIAT:
FR7
FR9B
- FIATALLIS:
315
FR7
FR9B
- FIAT:
PL40
- FIATALLIS:
PL40
- FIATALLIS:
70
9B
- FIATALLIS:
7B
- FIATALLIS:
FL5
S90
- IRISBUS:
300-680 682 N
MINIBUS A A60-10
MINIBUS A A60-9
MINIBUS A A70-12
- NISSAN:
110D
- NEW HOLLAND:
PATRIOT 4430
- PERKINS:
4.108
4.99

Novas Conversões:
ALCO FILTERS SP-878
AMA AGRICULTURAL 02039
BALDWIN BT 238
BALDWIN BT 347
BENATI 1836102
BEPCO 20199114
BEPCO 50518206
BEPCO 60/97-40
BEPCO 60/W8005
BOSCH 0451302182
BOSCH 9450732003
BOSS BS 03-096
BOSS BS 03-130
BOURGOIN 25026662
CERMAG 10465
CHAMPION C 120
CLEAN DO 243
CLEAN DO 821
COOPERS AZL 034
COOPERS LSF 5134
CROSLAND 585
CROSLAND 9305
DONALDSON J 86-10566
DONALDSON P 55-1603
FIAAM FT 4670
FIAAM FT 4670 T
FIAT 1901603
FIAT 1906566
FIAT 1907566
FIAT 1909101
FIAT 4597232
FIAT 4600875
FIAT 4625546
FIAT 4629544
FIAT 4630786
FIAT 4643371
FIAT 4648371
FIAT 4730586
FIAT 4951092
FIAT 61660298
FIAT 74008751
FIAT 8820772
FIAT 8822645
FIAT 9819501
FIAT FO 4600875
FIAT FO 4625547
FLEETGUARD LF 3347
FLEETGUARD LF 3575
FLEETGUARD LF 4055
FRAD 40.60.13/110
FRAM PH 2824
FRAM PH 4559
GIF GL 337
GRANIT 2007
GRANIT 8002007
GREEN FILTER KUZEY GS 4071
GREGOIRE 170048
GREGOIRE 170096
GUD Z 72
GUIOT GH 2824
HENGST H 210 W
HENGST H 210 W 02
IMER 015
ISOTECH FHPL 014
IVECO 4648371
KOX FO 034
KRON 689.00.00
LAUTRETTE ELH 4734
LAUTRETTE ELHA 4016
LAUTRETTE ELHA 4037
LB FILTRI FF 332EC
LEITNER 22171
LUBERFINER LFP 2230
M FILTER MH 358
MAHLE AW 55
MAHLE CV 350
MAHLE OC 14
MAHLE OC 308
MANN W 8005
MATCH FILTER 101 FL 1260
MISFAT Z 107 A
MOTORCRAFT EFL 231
NEW HOLLAND 71901603
NEW HOLLAND 71909101
PBR BC 1032
PRO FILTERS FH 243
PRO FILTERS FH 821
PUROLATOR L 17582
PZL SEDZISZOW PP-15.3
SAKURA C-7917
SAMPIYON CS 1409 B
SAUDI FILTERS SF 175826020
SAVARA SO 010
SAVARA ANCIEN NO 9.28.010.17
SAVARA ANCIEN NO 9.28.287.17
SDMO 330560206
SDMO 330560753
SF SP 4360
SLH 2.4419.170.1
SOFIMA S 0800 R
SOFIMA S 9710 R
SPAREX S.109623
SPAREX S.62135
STEP FILTERS HC 5734
TECNOCAR R 179
TECNOCAR R 80
UFI 23.107.00
UFI 23.107.01
UNICO LI 10168
VAPORMATIC CPD 5037
VAPORMATIC VPD 5037
WEGA FILTROS WO-620
WOODGATE WGL 3347
WOODGATE WGL 3347 A
YVEL YFH 01403
