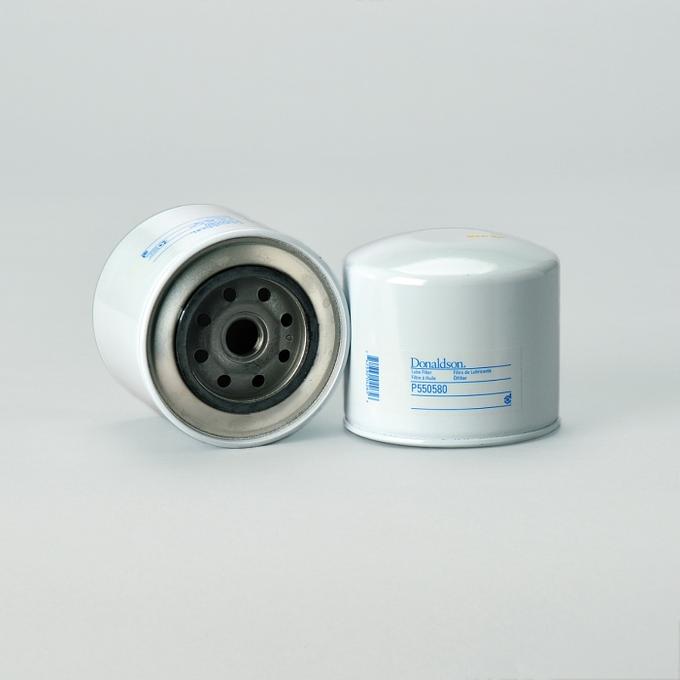

Filtro Óleo Donaldson P550580

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Outer Diameter: 109 mm (4.29 inch)
Thread Size: 3/4-16
Length: 96 mm (3.78 inch)
Gasket OD: 71 mm (2.80 inch)
Gasket ID: 61 mm (2.40 inch)
Efficiency 99%: 45 micron
Anti-Drainback Valve: Yes
Bypass Valve: Yes
Bypass Valve Setting LR: 0.6 bar (9 psi)
Bypass Valve Setting HR: 0.8 bar (12 psi)
Collapse Burst: 5.2 bar (75 psi)
Type: Full-Flow
Style: Spin-On

Esse produto é compatível com as seguintes marcas:
- A P PARTS:
AP3145A
- AC DELCO:
X66
X510
X511
X512
PF2194
PF6
X125
X503
- AGCO:
10A14373
- ALCO:
MD089
SP824
SP906
SP907
MD109
- ALFA ROMEO:
116000603099
116000503099
4112209413559
60521128
105550603000
10555060300
105550603001
10555060300003
105550603002
10555060302
- ALLIS-CHALMERS:
64874
4371582
4371581
4363010
4113539
4113559
4135559
4208326
4181058
4230942
4228326
4243301
4236942
4356500
4356575
- ALLOY:
ABH7
- AMERICAN MOTORS CORPORATION:
SFO4792
SFO0096
SFO3175
OC29020
- AMERICAN PARTS:
92775
725
92189
- APOLLO:
FP190
- ARMAFILT:
O1091001
- ATLAS:
T134
- ATLAS COPCO:
TF27
- AUTO PAR:
FE228
- BERGERAT MONNOYEUR:
E6681
- BIG A:
725
92189
92775
- BOSCH-REXROTH:
OF101
0451203011
O232
0451203058
0451203006
P3058
451203177
451203178
451203011
451203058
72101
451203006
P3178
451103170
9450732009
9450732019
9450732001
9450732000
- BROS:
E380141
- CAM2:
FP190
- CARCARE:
OF7
- CASE/CASE IH:
C7NN6714A
C5NN6714A
CFBN6714A
CBPN18649A
D9NN6714DA
A760X6714RA
A700X6714MA
B9NN6714H
B9NN6714A
A800X6714BA
B8NN6714A
1966279C1

3I1195
- CENEX:
CO190
- CHAMP:
FP190T
FP190
- CHRYSLER:
L116
- CLEAN:
DO224
DO255
- CONOCO:
CN51775
CN7
- COOP:
PL7
- COOPERS:
Z494
Z52
Z570
Z60
Z69
Z904
AZL007
Z96
LSF5102
- CROSLAND:
591
484
623
2047
2043
- CYCLONE:
PM285
- DAIHATSU:
1560196001
- DELUXE:
WD108
108
- DEUSCH:
D388
- DEUTZ:
00441567010
- DIAMOND:
FD8226
FD8245
- DIVCO:
8115
- DONIT:
431017
431040
- DRESSER:
1966279C1
- EIMCO:
69008944
2NP550580
- EVERGARD:
L20020
- EXMAN:
SFO0096
SFO4792
OC29020
SFO3175
- FACET:
L7
7
- FAMEL:
FT4949
- FIAAM:
FT4803
FT4775
FT4781
FT47811F
FT47101F
FT5044
FT4710
FT5036
FT4902
FT4829
FT4627
FT4949
FT4925
- FIAT:
4394463
43944630
43917650
D9NN6714DA
4243301
4449040
4224194
4228326
4233784
4236942
4202887
4434792
4434794
4434825
4209314
4209374
4209394
4397165
43971650
A700X6714MA
5939831
650354
9129
73471581
60574554
1901606
24028326
74228326
74243301
74236942
CFBN6714A
74135559
74181058
4176610
4181058
4189485
CBPN18649A
74371582
A800X6714BA
86546606
B9NN6714A
B9NN6714H
74363010
74356575
74356500
B8NN6714A
C5NN6714A
A760X6714RA
4356500
4356575
4777082
4290372
4712132
428326
4719150
4135559
4381608
4382018
4112209
116000603099
4371581
4371582
4363010
4363484
C7NN6714A
- FILT:
FF294EC
FF280EC
FF366EC
- FINN EQUIPMENT:
FFUP422
- FIRESTONE:
TF7
- FISPA:
FOE036
FOE011
FOE012
LI3970
FAP011
FOE183
- FORD:
5006580
5007385
A720X6714DA
CFBN6714A
5018356
A760X671RRA
A760X6714RA
A700X6714MA
D9NNG714FA
B9NN6714A
B9NN6714H
A800X6714BA
C5NN6714A
5014056
C5NN6714B
A800X671RBA
5016946
C7NN6714A
1526270
B8NN6714A
D9NN6714DA
5011887
D9NNG714DA
D9NN6714FA
1700X6714M1
9576P550580
1814346
88NN6714A
5002798
300
309825
C9NN6714A
CBPN18649A
- FREIGHTLINER:
DNP550580
- FSA:
FO1012
- FWD:
B8NN6714A
- GIESSE:
CLH355
- GIF:
GL385
- GOODYEAR:
2224527
L7
- GOULD:
P285
- GRANT:
FP190
- GREYFRIARS:
914S
- GUD:
Z60
Z35
- GUIOT:
GH2843
GH2807
- HANOMAG TRAKTOREN:
6031840125
- HARMO:
S828
- HAVAM:
HD0275
- HESSTON:
4371582
- HITACHI:
74135559
74181058
74228326
74236942
73471581
74371582
74363010
74356500
74356575
74243301
- HONDA:
41211831
- HUERLIMANN TRACTORS:
004415670
- HUTCHENS:
SF7
- HYDRA MAC:
2707084
- HYDROVANE:
2707084
- IAPCO:
OF100
- INTERCEPTOR MARINE:
DM16304
2517A
- INTERNATIONAL:
1966279C1
3055228R93
3132022R92
- IVECO:
4236942
4719150
1901606
- KNECHT:
OC36
AW28
AW283
AW6
AW103
AW108
OC86
OC133
OC17
- KOEHRING:
8825164
- KRALINATOR:
L29S
L29A
L29
- KUBOTA:
1940432430
- LAMBORGHINI:
4415540
441567001
53915520
- LAUTRETTE:
ELH4069
ELH4087
ELHA4069
- LAZORLITE:
U111597
- LEE MAXI:
LF190HP
- LOCKHEED:
FC187
AP3145A
574187
- LPM:
13505190
- LUCAS:
F4689
F628
- MANITOU:
814346
136163
106487
- MASSEY FERGUSON:
1015511M92
1015500M91
1015511M91
1005511M91
- MASTE:
DK32
- MCCORMICK:
MC1966279C1
- MISFAT:
12312800
- MONARK DIESEL:
30758070
- MOTAQUIP:
VFL185
VFL175
VFL112
VFL150
VFL229
VFL221
- MUSTANG:
42532300
- NEW HOLLAND:
A700X6714MA
A760X6714RA
B8NN6714A
C5NN6714A
B9NN6714H
B9NN6714A
C7NN6714A
A800X6714BA
CFBN6714A
CBPN18649A
D9NN6714DA
86546606
- NISSAN/UD TRUCKS:
993070
101551M91
- OLSSONS I ELLOS AB:
BM784592
- ORENSTEIN & KOPPEL:
103914
- P.B.R.:
BC1091
BC1051
- PERMATIC:
FH132V
- PERRY:
PL108
- PHILLIPS 66:
P775
P20
- PRO MATCH:
972690
- PURFLUX:
LS194
LS775
- QUAKER STATE:
QS7
- RANSOMES:
8191061
- RENAULT VI:
7701349779
7701008689
5000041045
- REPCO:
1116000
- SAME:
04415540
0441554001
411554001
244191401
0441567001
04415670
05315520
441554001
4415540
441567001
4415670
5315520
- SAURER:
2060471915000
- SAVARA:
SO325
92155617
928008
92800817
SO022
SO008
92802217
- SEAT:
4434825
4449040
3938626
- SECURITY:
FP190
- SOPARIS:
CV349
CV378
- STAY READY:
SRPMM1
- SUNOCO:
OF7
- TECALEMIT-TJ:
R349
- TECHNOCAR:
R75
R64
R175
- TEREX:
103914
- TEXACO:
HSO131
TFC510B
TFC510
- TIMBERJACK:
401947
405484
- TODD GT:
2240013
- TRANE:
8449002701
- UNION 76:
OF1189
- UNIPART:
GFE272
- UNITED CENTRAL INDUSTRIAL SUPP:
688520
- UNOCAL:
OF1189
- VAPORMATIC:
VPD5065
- VMC:
LF550580
- VOLVO:
784592
- WAKO:
LO802
- WALGAHN-MOTORENTECHN:
00811319
811319
- WARNER & SWASEY:
FP190
- WARTSILA:
O1091001
- WFZ:
9025505800
- WGB:
S166CP
- WHITE:
10A14489
10R1327
10A14373
- WORLDPARTS:
W27314
W27359

Esse produto serve para as seguintes marcas:
- ALLIS-CHALMERS:
540
- FORD:
3550
550
655A
- NEW HOLLAND:
655A
- BADGER:
6035
8045
- HYSTER:
H40H
- MANITOU:
RM 4RM26PC
MB MB20TC
MB MB21JC
MB MB21NC
MB MB25XF
MB MB26PC
MB MB30CP
MB MB30NC
MB MB3XF
MB30TC
MC40TC
MC50TC
MC MC20TC
MC MC30TC
MC MC40FC
MCE MCE20H
MCE MCE20TS
MCE MCE25H
MCE MCE25TS
MCE MCE30H
MCE MCE30TS
MCL MCL25H
- SANDERSON:
2277
550
PLANTMAN 365
SB50
SB504
SB55TC
- WHITE:
50
60
70
MY40
- BARBER-GREENE:
774
- DITCH WITCH:
R65
- VERMEER:
M440
M450
M475
M485
M50
- BLAW KNOX:
PF65
- CASE/CASE IH:
2000 2120A
2000 2130
2000 2140
2000 2140A
2130A
2150A
- DEUTZ-FAHR:
AGROPLUS 77
AGROPLUS 87
- EICHER:
2070 A
- FIAT:
241
- FORD:
1801
3500
3600
4000
420
4400
4410
4610SU
501
501D
515
532
535
540A
545
5500
555
5550
5700
6000
601
601D
6410
650
6500
6610
6700
6710
7000 1965
701
701D
7500
801
801D
900
901
901D
- GOLDONI TRACTORS:
600 654 COMPACT
- HUERLIMANN TRACTORS:
361
361F
361V
361XF
468
468.4
656DT
656XAT
G 335F DT
H 1500 DT
H 305 XE
H 306 XE
H 307 XE
H 335F
H 355
H 358 PRESTIGE
H 358.4
H 360
H 361 XF
H 460
H 465
H 470
H 480
H 485
H 488
H 490
H 607 XA
H 656 XA
H 706 XN
H 707 XN
H 708 XN
H 709 XN
TD405
TD40P
TD50C
TD50S
TD56C
TD56S
TG40C
TG40P
TG40S
TG50C
TG50P
XA 606 DT
XA 607 DT
XA 65
XA 655
XN 707
XN 708
XS 70
XT 908 DT
XT 909 DT
XT 910.4 DT
XT 910.6 DT
XT 911
XT 913
H 300 H 355F
H 400 H 468.4
XA XA 656
XN XN 706
XT XT 910.6
- LAMBORGHINI:
AGILE 660
PLUS 660F
AGILE 770
AGILE 770S
AGILE 775V
AGILE 880
AGILE 880S
AGILE 989
C 553P
C 653P
CRONO 564-60DTA
CRONO 574-70DT
GRAND PRIX 674-70DTXLS
GRAND PRIX 774-80DT
PLUS 775F
PREMIUM 1060DTA
SERIES 240
SPRINT 664-60DT
SPRINT 674-70DT
- NEW HOLLAND:
6500
7500
- SAME:
100.6 DT
4 RM
60 EXPLORER
60 II
65 C
70 DT
75C ERGOMATIC
80 C
80 DT
ANTARES 110
ARGON 50
ARIETE 137
ASTER 60
CARSARO 70
CENTAURO 70
CENTAURO 75
CENTURION 75
CENTURON 75
CONDOR 55
CONDOR C
CORSARO 60
CORSARO 70
DELFINO 32 2RM
DELFINO 32 4RM FRUTTETO
DELFINO 35 DESERTO
DORADO 85
DORODO 60
EXPLORER 55
EXPLORER 60
EXPLORER 70 C
EXPLORER 75
EXPLORER 80
EXPLORER 90 C
FOX 35
FOX 55
FRUTTETO 60 DT
KRYPTON F100
KRYPTON F80
KRYPTON F90
LEONE 75
LEOPARD 80
LEOPARD 85
LEOPARD C
MERCURY 85
MINITAURO 60
ROW CROP 80
ROW CROP 90
SATURNO 80
SILVER 100.6
SILVER 80 DTA
SIRENETTA
TAURUS 60
VIGNERON 35
VIGNERON 60
VIGNERON 75
VIGNERON VIGNERON 70
- WHITE:
200
4 STAR SUPER
400
705
706
707
708
709
BIG MO 400
BIG MO 500
BIG MO 600
G6
G704
G706
G707
G708
G709
GV1
MM600
MO-TRAC
RT
U302
UNITRAC
- ZETOR:
10000 14245
10000 16245
- DEUTZ-FAHR:
60F
60V
70F
70V
80F
80V
90F
90V
- FIAT:
280
310
SP50
SP55
- MUSTANG:
81
92
- NEW HOLLAND:
910
912
- FORD:
144
172
2401
2402
2701
2703
2704
BSG-442
- SAME:
1052 LP
1082 L
982 L
982 LP
983 L
- FORD:
445
55
- FORD:
611
622
642
- NEW IDEA:
706
- WHITE:
S24
- FREIGHTLINER:
FLD
- IVECO:
40-8 1983
- RENAULT VI:
B B70 1983
TP TP3 1980
- GEHL:
4400
- HYDRA MAC:
18D
20C
20CD
- MUSTANG:
1699
1700
770
- NEW HOLLAND:
L L778
- GRADALL:
G600
- GRADALL:
M2640
- HAHN:
GO-BOY
HI-BOY
- HOBART:
GF250
GR303
- JACOBSEN:
F10
- LEROI:
125ID2
- SCHRAMM:
125
- LULL:
225
- MANITOU:
ML ML225FC
ML ML425FC
MT MT220FC
MT MT222FC
MT MT420FC
MT MT422FC
- SANDERSON:
247
247T
TELEPORTER 227
- MUSTANG:
880
- NEW HOLLAND:
1114
900
901
903
905
907
909
- NEW HOLLAND:
HAY CRUISER 1282
- TIMBERJACK:
200C
201
205
220
250
- WHITE:
165A
206B4
206C4
206L4
206M4
206N4
220-4
220-4A
425A-6
425B-6
504-6
504-6A
M220B4
M220B4A
MO-TRAC
MOBIL-TOW 40
MOBILIFT E
MOBILIFT F
