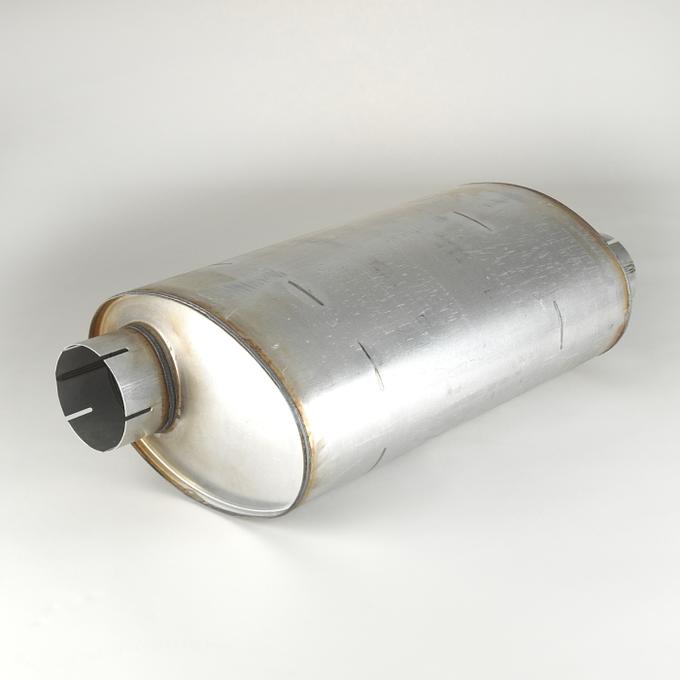

Amortecedor Donaldson M120225

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Inlet Diameter: 127.64 mm (5.03 inch)
Outlet Diameter: 127.64 mm (5.03 inch)
Body Diameter Minimum: 254 mm (10.00 inch)
Body Diameter Maximum: 381 mm (15.00 inch)
Body Length: 647.7 mm (25.50 inch)
Overall Length: 825.5 mm (32.50 inch)
Rated Flow LR: 47.2 m³/min (1667 cfm)
Rated Flow MR: 66.7 m³/min (2355 cfm)
Rated Flow HR: 81.7 m³/min (2885 cfm)
Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
Attenuation LR: 15 dBA
Attenuation HR: 20 dBA
Inlet Clock Position: 3:00
Outlet Clock Position: 9:00
Style: Style 2

Esse produto é compatível com as seguintes marcas:
- A P PARTS:
3647
3647Q
- AGCO:
T0902021H
- AP EXHAUST PRODUCTS INC:
3647
- ASTEC UNDERGROUND:
21001321
- BADGER:
530372
76047483
0520372
- BARKO HYDRAULICS:
53500420
- CAMECO:
0551346685
551346685

1248880
12408880
300104001
- CENTURY II:
27Q389
- CMI:
43064111
43064
4003064111
4003064000
004003064000
- CRANE CARRIER:
2100165
- CUMMINS:
10000557
CDD000122
- DRESSER:
PB4890
- DRILTECH:
003466001
7587001
007587001
3466001
- DYNAFLEX:
89500147
- DYNAPAC:
801852
- EMERGENCY ONE, INC.:
597286
597256
- FMC:
28H1012
- FORD:
9575M120225
D5HS5230EA
- FREIGHTLINER:
DNM0M120225
DNM120225
- GRADALL:
5826864
- GROVE:
7642100021
- HEAVY DUTY MFG:
31199
- INGERSOLL RAND:
56897978
- INTERNATIONAL:
DCM120225
- KOMATSU:
PB8490
PB4890
- LEROI:
78314
- LINK BELT:
28H1012
- MACK:
2ME236P3
- MANITOWOC:
7642100021
- MERCEDES-BENZ:
DNM0M120225
DNMOM120225
- NELSON:
86147M
- ORENSTEIN & KOPPEL:
2143292
- OSHKOSH:
EE100601
- P & H:
27Z354
27Q389
- PETTIBONE:
A1204265
- REEDRILL:
419844
- REICHDRILL:
PS417413
13PS4174
- RIKER:
15005
- SANDVIK:
007587001
- SPARTAN MOTORS:
1102LL2001
- SULLAIR:
242367
- TAMROCK:
671733
- TEREX:
15023916
27Q389
2143292
15253991
- TIM:
1248880
- TRUCKEX:
3676
- VME:
4088683
- WALGAHN-MOTORENTECHN:
00810347
810335
00810335
810347
- WALKER MANUFACTURING:
22552
- WIRTGEN:
117544
