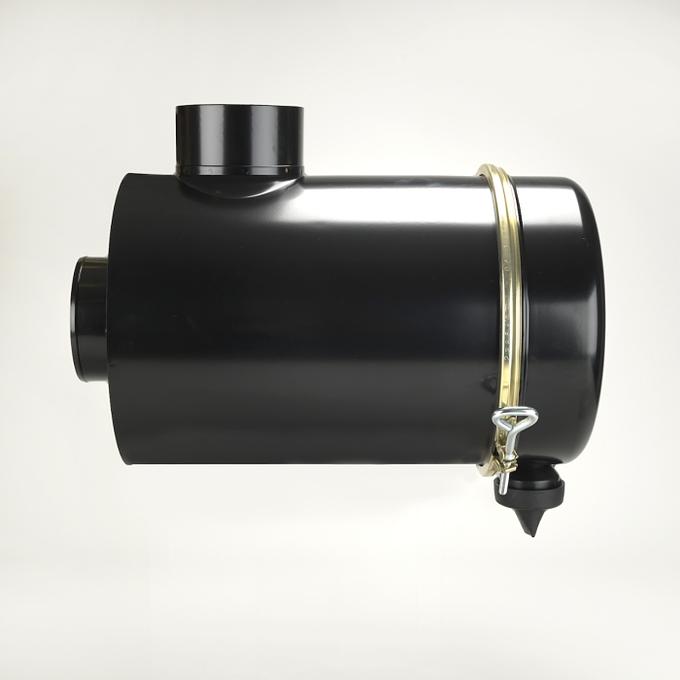

Montagem Purificador Ar Donaldson G140054

A responsabilidade da compatibilidade do produto com a sua aplicação é do comprador. Não nos responsabilizamos por qualquer tipo de prejuízo vindo da aplicação incorreta do produto. Sempre consulte o fabricante do seu equipamento e confirme a compatibilidade com o instalador.

Length: 560 mm (22.05 inch)
Inlet Diameter: 152.4 mm (6.00 inch)
Outlet Diameter: 152.4 mm (6.00 inch)
Body Diameter Maximum: 355.6 mm (14.00 inch)
Body Length: 431.8 mm (17.00 inch)
Overall Length: 617.73 mm (24.32 inch)
Inlet Length: 257.05 mm (10.12 inch)
Outlet Length: 57.4 mm (2.26 inch)
Service Clearance: 307 mm (12.09 inch)
Rated Flow LR: 14.7 m³/min (519 cfm)
Rated Flow MR: 17.1 m³/min (604 cfm)
Rated Flow HR: 19.3 m³/min (682 cfm)
Restriction LR: 152 mm H2O (5.98 inch H2O)
Restriction MR: 203 mm H2O (7.99 inch H2O)
Restriction HR: 254 mm H2O (10.00 inch H2O)
Family: FHG
Vacuator Clearance: 272 mm (10.71 inch)
Inlet Location: 134 mm (5.28 inch)

Esse produto é compatível com as seguintes marcas:
- AG CHEM EQUIPMENT:
512656
- AGCO:
1495414M91
AG512656
- ASTEC UNDERGROUND:
30805L1040
- ATHEY:
P803228
- ATLAS COPCO:
350050
- B R LEE INDUSTRIES:
953521240
- BADGER:
76093386
- BARBER-GREENE:
29E49
- BARKO HYDRAULICS:
53501248
53501177
- BENATI:
275438
- BLOUNT:
8612917
- BREDAMENARINIBUS:
175201
- CAMECO:
AU43090
- CASE/CASE IH:
73068508
1849281
L55368

7X6753
- CEDARAPIDS:
4569000132
- CLARK:
M1513890
061513890
61513890
- CMI:
004002963000
4002963000
- COMPACTION AMERICA:
0391506
853521252
- COMPAIR:
43944
- CRANE CARRIER:
102B16
102B0016
102A88
- CUB CADET:
702319C91
1616480C92
- CUMMINS:
3000301
- D A PRODUCTS PTY LTD:
ACU5707
- DART:
FHG140054
- DEUTZ:
1495414M91
- DORMAN:
L551AW
88093
- DRESSER:
702319C91
98927
VP7011
- DYNAPAC:
00081831
- EIMCO:
64806027
109193
64125066
- EUCLID:
M1513890
- FG WILSON:
160066
- FIAT:
1849281
73068508
- FMC:
2236399
8A633704
- FORD:
FHG140054
E8HS9600BA
- GETMAN:
605023
- GRADALL:
83953073
- GRIMMER SCHMIDT:
924883
42963
- GROVE:
7304000623
- HAVAM:
HD2520
- HITACHI:
73068508
- HYSTER:
S00939400016
391506
1373550
- INGERSOLL RAND:
59762104
- INTERNATIONAL:
1616480C92
- JLG:
83953073
- JOHN BEAN:
5281563
- KERSHAW:
162437
- KOEHRING:
853521252
- KOHLER:
GM29527
- KOMATSU:
98927
702319C91
VP7011
- LEROI:
43944
- LEYLAND-DAF (LDV):
ACU5707
- LINK BELT:
8A633704
- LOESING:
20065
020065
- LONG:
G140054
- LULL:
P21150
- MACK:
2MD4136
25116801
- MANITOWOC:
7304000623
- MINNPAR:
H1495414M91
- MOXY:
151446
- MULTI PART:
ACU5707
- NACCO MATERIALS:
1373550
- NEW HOLLAND:
73068508
- OMARK MATERIAL HANDLING:
8612917
- ONAN:
1402245
01402245
- OSHKOSH:
39466A
- OTTAWA TRUCK:
90001953
90001963
- PERKINS:
PI02690
- PERLINI:
245003
- PETTIBONE:
LL847347
- RAYGO:
7X6753
- RENAULT VI:
5010222940
5010222940A
- ROSCO:
953521240
- ROVER:
ACU5707
- SANDVIK:
64806027
64125066
- SULLAIR:
250030761
- TAMROCK:
64806027
- TEREX:
1243160
1513890
9378289
09378289
- TRACKMOBILE:
N0001393
- TROJAN:
2081099
208109900
- TYLER POWER PRODUCTS:
2296140
- UNIPART:
ACU5707
- UNIT RIG EQUIPMENT:
C1513890
- UNITED CENTRAL INDUSTRIAL SUPP:
908105
- VERMEER:
140175001
- WAGNER MINING EQUIPMENT:
350050
- WALGAHN-MOTORENTECHN:
00810136
- WHITE:
10A31417
- WORDSWORTH HOLDINGS PLC:
PG621523
